12 models available
Liquid flow rates: up to 800 m³/h
Temperatures: up to 200°C
Pressure: up to 25 bar
Operating range :
Capacity: 5 to 5000 kW

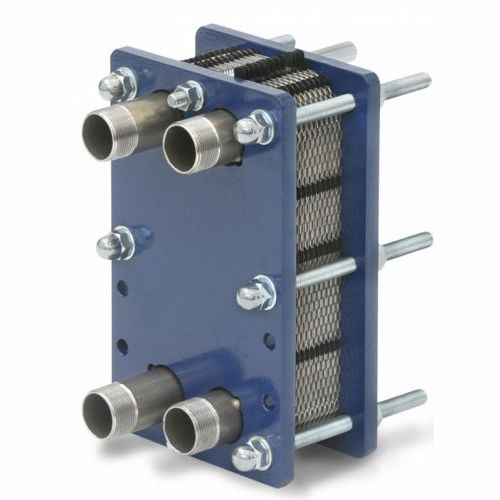

Gasketed plate heat exchanger transfers heat between two fluids. For use in residential, commercial, industrial and healthcare applications.
Stacked set of gasketed, stamped plates
Plates compressed by bolts between fixed end and movable end
Clipped on (plug-in) gaskets create flow channels between plates and prevent venting to the atmosphere
Plates, gaskets and connections available in various materials
Male threaded union, female threaded sleeve or flange
Excellent transfer coefficient, reduced surface area
Ultra-slim: takes up little space
Easy to install
Easy to maintain
Very low pinch-point temperature possible
High corrosion resistance
Plates can be added to meet changes in capacity demand
Controlled heat exchange
Thanks to their excellent heat-transfer coefficients and their slim design, CIAT's gasketed
plate heat exchangers have established themselves as an alternative to multitubular
heat exchangers in many fields.
CIAT reasserts its expertise as a manufacturer with its ITEX range, with
capacities ranging from kilowatts to a number of megawatts.
Heating and cooling for industry
and climatic engineering.
Marine and seawater applications
Geothermal energy, solar energy,
Heating of domestic hot water
