CT scan test phantom 008A

thorax

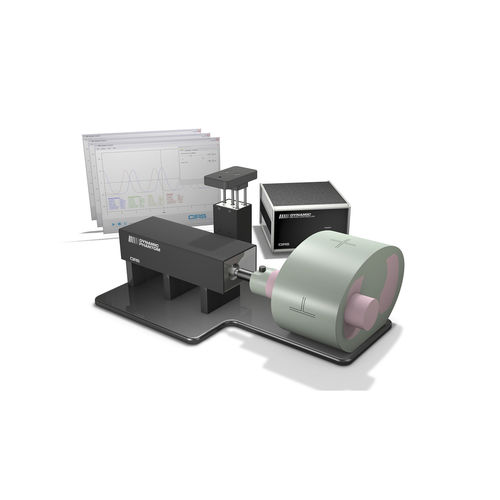

The CIRS Dynamic Thorax Motion Phantom is a precision instrument for investigating and minimizing the impact of tumor motion inside the lung. It provides known, accurate and repeatable three-dimensional target motion inside a tissue-equivalent phantom. It is designed for comprehensive analysis of image acquisition, planning and dose delivery in image-guided radiation therapy. The phantom body represents an average human thorax in shape, proportion and composition. A lung equivalent rod containing a spherical target and or various detectors is inserted into the lung equivalent lobe of the phantom. The body is connected to a motion actuator box that induces three-dimensional target motion through linear translation and rotation of the lung equivalent rod. The motion of the rod itself is radiographically invisible due to its matching density with the surrounding material. The target and its motion, given its density difference, can be resolved. Target and surrogate motion are independently controlled with CIRS Motion Control Software. The graphical user interface provides an unlimited variety of motions while simplifying the operation of the Dynamic Thorax Motion Phantom to an intuitive level. Features: Complex 3D tumor motion within the lung Sub-millimeter accuracy and reproducibility Motion software enables different cycles, amplitudes and waveforms Tissue equivalent from 50 keV to 125 MeV Compatible with TLD, MOSFET, nanoDot TM, Dose Gel, microchamber, PET/CT targets and film Surrogate breathing platform accommodates numerous gating devices
