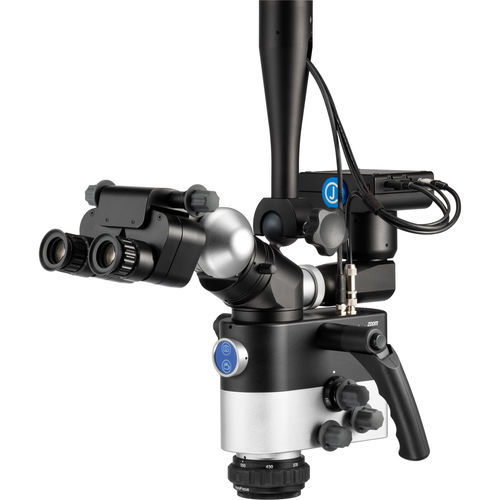

Dental surgery microscope Flexion Zoom Advanced

on casters

Discover the Flexion Zoom for precise, comfortable workflows!With the zoom function, you can adjust the magnification continuously and enjoy ultimate flexibility and razor-sharp vision – for perfect results with every treatment.20% continuously higher main magnification / y = 0.5 – 3.0Fully apochromatic Pancratic Zoom (1:6) systemSharper image quality by minimizing optical distortionLarger lens diameter for better aperture and depth of focusOptimum 3D impression through extended stereo baseTime-saving – allows quick adjustment to changing viewing conditionsTime efficiency – eliminates the need to switch between fixed magnificationsHigher treatment precision – essential for detailed workOptics – For superior resultsAdvanced Optical Design: CJ-Optik Flexion microscopes are highly acclaimed for their superior image quality. It is only through CJ-Optik working closely with the optics designer that the optimal specifications can be developed. With the use of apochromatic optics in the Flexion Advanced microscope dentists can detect the finest colour and structure details.Perfect Illumination: The fanless LED spot lighting provides a well-lit treatment area with high colour rendering index and 5,500 K. Future-proof with 65,000 hours lifespan. The spot diaphragm always shows the assistant the exact treatment site and prevents light from falling into the patient‘s eyes.VarioFocus: Choose from either the VarioFocus4 with 200 – 350 mm range or the VarioFocus5 with 210 – 500 mm working distance and plan-apochromatic correct built-in optics. The superior light transmission provides optimal viewing and documentation results. Removable protection cover lens with Hydrophobic Coating (HPC). Index Matching Coating for highest transmission and low reflection rates.Details make the Difference: Individual eyecup adjustment, large eye relief with bigger exit pupil, IPD adjuster optionally available.Ergonomics – For stress-free treatmentsFlexion: The Flexion is a flexible extension of the dentist’s eyes. The dentist‘s upright treatment position ensures a relaxed posture and thus prevents neck and back problems in the long term.MonoGlobe: The uniquely designed MonoGlobe is the weightless movement balancing system. The coupling system allows fluid and smooth repositioning at all angles without having to adjust the tension.Quality at the Touch of a Button: Ergonomically placed controls ensure that all functions are immediately at your fingertips for all inter-procedure changes.Cable Management: HDMI, USB, USB3, camera AC/DC power and 24V monitor power supply are integrated within the arm for a cleaner cable management. No fragile fibre-optic cables that break or tangle.DocumentationWhether you prefer to document the treatment in 4K, in HD or with a smartphone: Focal lengths and optics have been uniquely designed for an ideal match to today’s latest digital cameras.4K-Imaging-Port: For Sony, Nikon & Canon FullFrame camerasHD-Imaging-Port: For Sony, Nikon & Canon APS-C camerasPhone-Imaging-Port: Adapter compatible with all smartphones (up to 6.5”), MicVision App (iOS and Android)SensorUnit: For Sony cameras (FullFrame & APS-C)Full Connectivity: Swivel Arm Advanced with HDMI, 24V, USB, USB3. Direct power supply for the camera from the microscope.MicroVis – Documentation software: With the MicroVis software specially developed for the Flexion microscopes, the image and video files of the treatment are conveniently and securely placed in your patient‘s file. MicroVis is optionally available and compatible with all common practice management systems.Mounting OptionsFlexible and customized: Flexion offers different mounting options. In addition to the dimensions shown, CJ-Optik also offers tailor-made heights and lengths of all tripod parts in order to adapt the assembly to the premises in the best possible way. The parts can be interchanged (e.g. when changing from floor to ceiling mounting).Mobile Stand: Ideal for use in multiple rooms.Floor Mount: The space-saving alternative to the mobile stand.Ceiling Mount: Maintains ground clearance. Pillar height can be adjusted to any ceiling height.Wall Mount: The alternative to ceiling mounting.Recommended working position: The suspension arm is at a right angle and the microscope head is at a distance of one meter from the vertical column.Technical DataMagnification System0.5 - 3.0 (APO, manual zoom)EyepiecesWidefield eyepieces WF 12.5 x / Reticle *Tube SystemF = 170 mm apochromatic / 180° tiltable tubeStereo Base24 mm for enhanced 3D visionFocus SystemVarioFocus4 200 - 350 mm / Plan-APO / glass protection *VarioFocus5 210 - 500 mm / Plan-APO / glass protection *VarioFocus with hydrophobic glass protection *Illumination SystemFanless high power LED 5,500 K / 65,000 h life time2° with stepless spot diaphragm system, up to 100,000 LuxFilter SystemSwing in orange filterMovementMonoGlobe, 355° Axis controlHandlesErgonomic handles, 360° adjustableAsepsis1 x Asepsis set for the handles and knobs (sterilizable)DocumentationIntegrated beam splitter 50:50FlexionCam *4K-Imaging-Port / FullFrame *HD-Imaging-Port / APS-C *Phone-Imaging-Port / Smartphones *SensorUnit controls for photo / videoMicVision App (iOS) *MicroVis Software *PowerPower adapter for all Sony Alpha cameras, smartphonesStandsMobile stand *, wall mount *, ceiling mount *, floor mount *, dental units ** optionalKey Features / Technical Specifications:Magnification System: 0.5 - 3.0 (APO, manual zoom)Eyepieces: Widefield eyepieces WF 12.5 x / Reticle *Tube System: F = 170 mm apochromatic / 180° tiltable tubeStereo Base: 24 mm for enhanced 3D visionFocus System: VarioFocus4 200 - 350 mm / Plan-APO / glass protection *; VarioFocus5 210 - 500 mm / Plan-APO / glass protection *; VarioFocus with hydrophobic glass protection *Illumination System: Fanless high power LED 5,500 K / 65,000 h life time; 2° with stepless spot diaphragm system, up to 100,000 LuxFilter System: Swing in orange filterMovement: MonoGlobe, 355° Axis controlHandles: Ergonomic handles, 360° adjustableAsepsis: 1 x Asepsis set for the handles and knobs (sterilizable)Documentation: Integrated beam splitter 50:50; FlexionCam *; 4K-Imaging-Port / FullFrame *; HD-Imaging-Port / APS-C *; Phone-Imaging-Port / Smartphones *; SensorUnit controls for photo / video; MicVision App (iOS) *; MicroVis Software *Power: Power adapter for all Sony Alpha cameras, smartphonesStands: Mobile stand *, wall mount *, ceiling mount *, floor mount *, dental units ** optional
