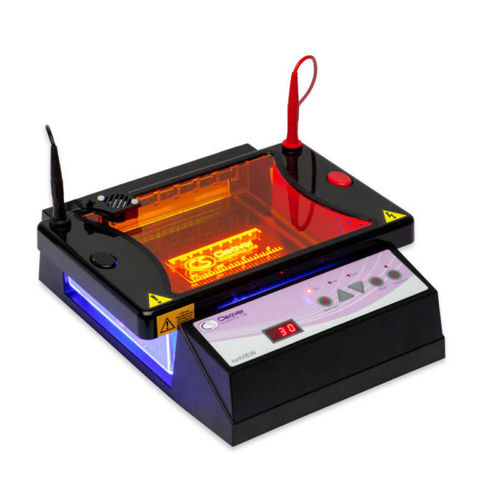

horizontal electrophoresis system / bench-top
RunVIEW

{{requestButtons}}

Characteristics

  • Configuration:

    horizontal, bench-top

Description

Key Features

Power supply integrated within the base unit – adjustable in precise 1V or 1mA increments to a maximum 150V or 300mA constant voltage or current output; timer function to 999 minutes for extended runs.
Specialist combs for specialist applications – double-sided 1mm preparatory combs (1- / 2-sample and 4- / 16-sample standard) included for nucleic acid recovery, plus four multichannel compatible 20- / 28-sample combs for rapid screening of nucleic acids from 96-well thermal cycler blocks and microtitre plates.
Get real-time – existing MSCHOICE users may customise their system by purchasing the base station and bluVIEW lid.

Description

Using RunVIEW is simple; first, cast a gel featuring two rows of wells with one matching pair of the preparatory combs supplied, before transferring the blue-light transparent gel tray to the MSCHOICE tank located on the base unit. Add sufficient buffer just to cover the gel, and remove the combs to load the DNA samples into the upper row of wells (loading tier). Replace the lid to connect the MSCHOICE tank to the integrated power supply before applying the voltage and switching on the blue LED gel illuminator. Watch through the bluVIEW lid viewing pane as the samples migrate in real-time to the second row of wells (extraction tier). Once the DNA bands of interest enter the tier, simply stop the power supply, remove the lid and harvest the DNA by pipette.
