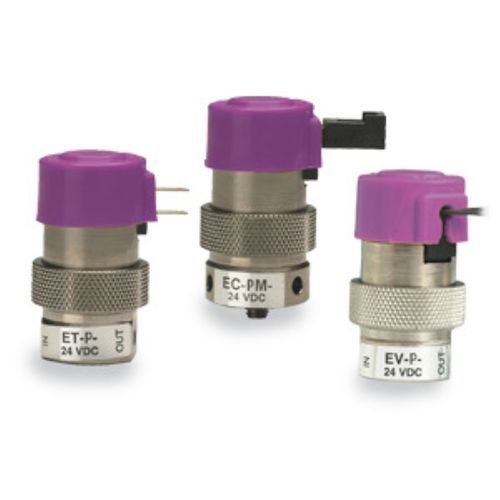

Gas valve EVP

coverproportionalsolenoid

The EVP 2-Way proportional control valves combine the features of the existing EV series valve—long life, low power, and Clippard's reputation for high quality components—with the additional capability for proportional control. The EVP series valve provides air or gas flow control, and varies the output flow based on the current input to the solenoid. Controllability and overall value are the main features of the EVP series. The consistent gain of this valve provides a high degree of control for many applications. The valve may be controlled using DC current, open- or closed-loo control, and even PWM to cover a broad range of applications. Flow proportional to input current Fast response & long life Small, compact design Single moving part for low friction & wear Five orifice sizes In-line or manifold mount 2D File - 2D File Accessories - Valve Driver in Enclosure EVPD-2, Valve Driver Board EVPD-1, DIN Rail Mounting Clip EVPD-2DIN, Installation Socket Torque Tool 30215 Data Sheet - Valve Data Sheet, Driver Data Sheet Function - 2-Way Normally-Closed Proportional Material, Body - Nickel Plated Brass Material, Seals - FKM Material, Seat - Stainless Steel Material, Wetted - ENP Brass, ENP Steel, Stainless Steel Max. Flow - ±10% of Target Flow Max. psig - 100 psig (7 bar) Maximum Hysteresis - 10% of Full Current Medium - Clean, Dry Air or Insert Gases Number of Ports - 2 Operating Instructions - Operating Instructions Operating Temperature Range - 32 to 120°F (0 to 48°C) Poppet Travel - 0.007" (0.2 mm) Porting - #10-32 Product Line Brochure - Proportional Valves Unit - Imperial Wattage - 1.9 Watts at 73°F (23°C), 2.4 Watts Max Weight (lbs.) - 0.1700
