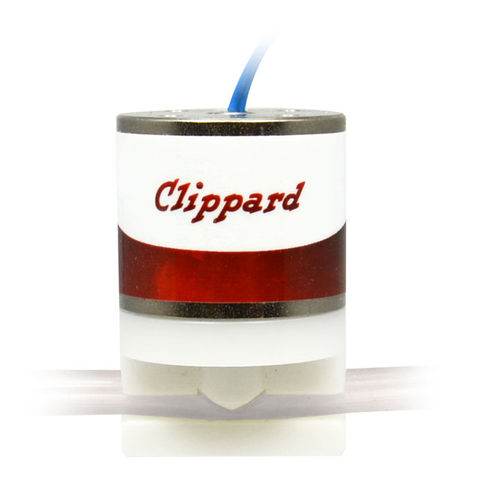

Medical solenoid valve NPV

silicone

The NPV Series Pinch Valve is a solenoid-operated device that is designed to open and close tubes for controlling flow of liquids and gases. Other valve types have internal passages that may cause small amounts of fluid to remain in the valve. Pinch valves have no areas or dead volume where fluid can become trapped. Only the inside of the tubing contacts the fluid. Energizing the solenoid retracts or attracts the plunger, which opens or closes the tube. De-energizing the solenoid will allow the plunger to return to its original state. Small, compact design Hygienic and easy to clean (replace tubes) Low power consumption High cycle life Can handle whole blood and particulate matter Unobstructed flow path Each valve comes with 12" of silicone tubing Variety of tubing sizes available Tubing is easily replaceable Common industries that use pinch valves for the benefits of isolating media from a mechanical valve include: drug dispensing, laboratory equipment, waste water, medical devices, chemical, food and beverage equipment, ceramic/glass/plastic, and solids handling. • Compact, Robust Design • Low Maintenance • Fast Response Time • Tubing Ranges from 0.031" up to 0.25" ID • Long Life—Tubing is easy to replace • Zero Dead Volume » Fluid samples are not contaminated by the previous sample through the tube. » There is no dead volume, as the tubing holds all the media. •Low Power Consumption » Low wattage coils ranging from 1.0 watt to 7.0 watts » To reduce power consumption, a hit and hold circuit can be utilized to energize the valve with full range
