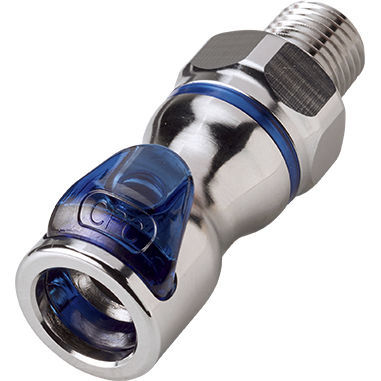

Medical coupling LQ4D10004BLU
spring

medical coupling
medical coupling
medical coupling
Add to favorites
Compare this product


Characteristics

Applications
medical
Other characteristics
spring

Description

1/4" Flow Everis LQ4 with 1/4" NPT, Valved In-Line Liquid Cooling Coupling Body, Cool Blue Material: Brass Material Finish: Chrome Pressure Range: Vacuum to 120 psi, 8.3 bar Color: Chrome with cool blue Mounting Option: Thread Temperature Range: 0°F - 240°F (-17°C - 115°C) Seal Options: EPDM Valve Spring: Stainless Steel Valve Option: Valved Body Type: Body Shipping/Storage Temperature Range: -40°F to 240°F (-40°C to 115°C) Spillage: <0.025 cc per disconnect rated at 0 psi; <0.055 cc per disconnect rated at 120 psi; <0.025 cc per connect Weight: .1685 Each Bag Qty: 10
