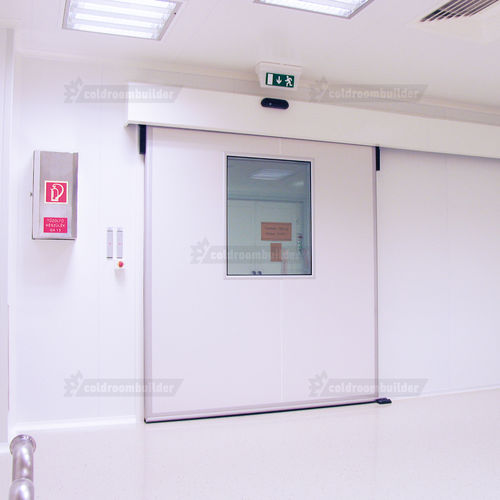

Clean room door

for the pharmaceutical industrysliding

Technical parameters of the PharmaClean-TT-S cleanroom sliding door Application: Sliding doors for laboratory, cleanroom and hospital environments Sizes: Standard size 1300*2000 mm clear opening, other sizes can be produced according to customer requirements Temperature range: +15C°/+35C° Door panel: Single or double sliding doors, with aluminium profile system Door panel thickness: 60mm Insulation: Solid door panels with PIR foam filling. Mineral wool filling optionally Glass: Flat safety glazing on both sides Door panel surface: Powder-coated steel plate, RAL 9002. Shipped with protective foil Optional surfaces: Stainless steel door panel inserts (the door profile system is aluminium in every case) Lock type: Stainless steel handle on both sides. Optionally with locks Latch: Optional electronic interlock pin for sluice system operation, with an emergency opening button, green-red indicator light. Automatic doors interlocking control with blocking Mechanics type: IglooDoors aluminium rail structure with ball-bearing rollers with dust protection cover on top Threshold: Model without threshold, the door panel sits in a closed position, rubber skirt is responsible for airtightness on the bottom Options: Moving the door panel automatically, model without handle, opening door with a card, integrated access control system, installing lock control
