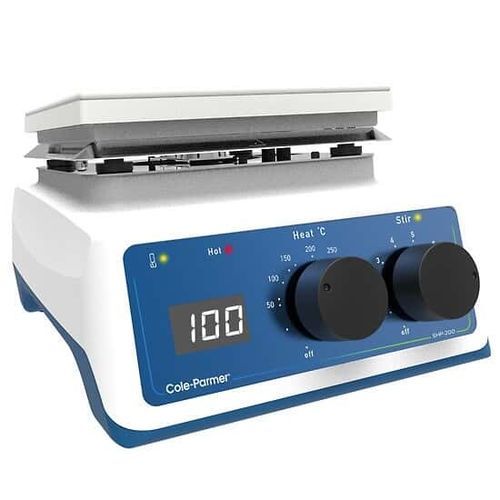

Digital heating plate SHP-200

with plate

Overview
Designed with microprocessor-controlled dual thermocouples, these stirring hot plates provide accurate temperature control and protection from overheating. Actual surface temperature is displayed in real time on an easy-to-read digital screen. Powerful magnets and motor provide stirring speeds of up to 2000 rpm and mixing capability of up to 15 L of liquid. The square plate design allows flexibility of vessel sizes and combinations.

Key features

• Easy-to-read display provides repeatable and accurate results every time
• Compact, stackable design takes up less benchtop and storage space
• Hot warning light remains on even when unplugged (alerts when surface temperature is above 50 °C and continues until it drops below 50 °C)
• Built with tough aluminum casing for longevity
• Designed to prevent accidental spillage on control panel
• IP32 rated for water and dust resistance
• BioCote® antimicrobial protection built in to reduce microbes on the product surface
• Optional temperature controller (sold separately) can be connected for precise sample temperature control

Description
These stirring hot plates feature BioCote® antimicrobial protection which reduces the presence of odor- and stain-causing microbes (such as bacteria, mold, and fungi) on the product surface by up to 99.99%. All models include an integral fitting for a retort rod and allow the retort base to slide underneath. Units include a standard mains switch for convenience and power saving. To achieve accurate sample temperature control up to 200 °C (392 °F), a temperature controller (sold separately) can be connected to the unit.

Available variants (excerpt)

• EW-04807-62 | Cole-Parmer SHP-200D-C Undergrad Digital Stirring Hot Plate, 15 x 15 cm, Ceramic | $693.00 | In Stock | Max Temp: 450 °C | Power: 230 VAC | Top Plate: Glass ceramic
• EW-04807-63 | Cole-Parmer SHP-200D-C-120 Undergrad Digital Stirring Hot Plate, 6" x 6", Ceramic | $715.00 | In Stock | Max Temp: 450 °C | Power: 120 VAC | Top Plate: Glass ceramic
• EW-04807-64 | Cole-Parmer SHP-200D-S Undergrad Digital Stirring Hot Plate, 15 x 15 cm, Aluminum | $714.00 | (variant availability varies) | Max Temp: 325 °C | Power: 230 VAC | Top Plate: Coated aluminium
• EW-04807-65 | Cole-Parmer SHP-200D-S-120 Undergrad Digital Stirring Hot Plate, 6" x 6", Aluminum | $725.00 | In Stock | Max Temp: 325 °C | Power: 120 VAC | Top Plate: Coated aluminium

Technical specifications

• Model / series: SHP-200 Series
• Temperature display: Real-time surface temperature on digital screen
• Stirring speed: Up to 2000 rpm
• Mixing capacity: Up to 15 L
• Max surface temperature (depending on variant): 325 °C or 450 °C
• Temperature controller: Optional, sold separately (for precise sample control up to 200 °C / 392 °F)
• Top plate materials (variants): Glass ceramic; Coated aluminium
• Power options (variants): 120 VAC; 230 VAC
• IP rating: IP32 (water and dust resistance)
• Casing: Tough aluminum construction for longevity
• Safety: Hot warning light active above 50 °C and remains until surface cools below 50 °C
• Antimicrobial protection: BioCote® built in (reduces microbes on surface)
• Design: Square plate design, compact and stackable; integral fitting for retort rod; retort base can slide underneath
