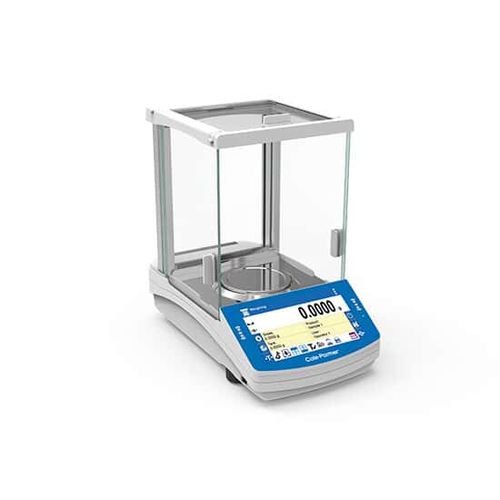

Analytical laboratory balance TB-800

dosingfor laboratoryfor animals

Overview
The Cole-Parmer® TB-800 Series touch-screen analytical balances offer a removable 3-door glass draft shield, fast stabilization, programmable touch-free IR controls, multilingual menus and GLP autotest reporting to support laboratory workflows.

Key features

• Compact weighing surface for accurate measurement of small samples
• Five-year warranty
• Models with 0.01 mg and 0.1 mg (four-place) readability
• Two IR proximity touchless sensors configurable per working mode
• 4-1/4" x 2-1/2" color capacitive touch-screen for clear result display
• Interfaces: USB, RS-232, Ethernet and Wi‑Fi for secure data transfer
• Autotest GLP function for enhanced diagnostic reporting
• Adjustable filter settings to optimize response in variable environments
• Customizable menu layout for frequent tasks
• Statistics mode to analyze measurement series quickly
• Spacious weighing chamber with tool-free assembly/disassembly
• Anti-static coating on chamber panes

Detailed description
The TB-800 balances include a removable glass draft shield with three doors for easy access and cleaning. Calibration is performed internally or externally using a calibration mass. The 4-1/4" x 2-1/2" color capacitive touch-screen displays a status bar, weighing result window, editable fields and a configurable toolbar. The area beneath the weight readout can be customized for user-defined functions. Two programmable infrared (IR) proximity sensors enable touch-free operation to minimize cross-contamination. Available working modes include weighing, parts counting, check weighing, dosing, percent weighing, density (solids and liquids), animal weighing, statistics, peak hold and formulations. Additional functions: adjustable filter levels, quick-access keys, tare, zero, auto switch-off and backlight timeout. Onboard databases store products, users, packaging, customers, formulations, formulation reports, ambient conditions and weighing records. User access controls limit adding, exporting, importing, deleting and printing saved data. RS-232, 2×USB-A (interchangeable), USB-B, Ethernet and Wi‑Fi provide external connections for GLP/GMP-compliant output. The autotest GLP function generates an enhanced balance summary to assist with operation assessment and error diagnosis.

Product options (variants)
Calibration Type | Capacity (g) | Readability (mg)
Internal | 160 | 0.1
Internal | 220 | 0.1
Internal | 310 | 0.1
External | 62 | 0.1
External | 160 | 0.1
External | 220 | 0.1
External | 310 | 0.1

Technical characteristics / specifications

• Series: TB-800 Series
• Display: 4-1/4" x 2-1/2" color capacitive touch-screen
• Readability: models with 0.01 mg and 0.1 mg (four-place)
• Calibration: internal or external (mass)
• IR proximity touchless sensors: 2 programmable sensors
• Working modes: weighing, parts counting, check weighing, dosing, percent weighing, density (solids & liquids), animal weighing, statistics, peak hold, formulations
• Data interfaces: RS-232, 2×USB-A (interchangeable), USB-B, Ethernet, Wi‑Fi
• Onboard databases: products, users, packaging, customers, formulations, formulation reports, ambient conditions, weighing
• Autotest GLP: enhanced balance summary for diagnostics
• Adjustable filter settings and fast stabilization/response
• Weighing chamber: removable 3-door glass draft shield with anti-static coating and tool-free assembly
• Warranty: five-year warranty
