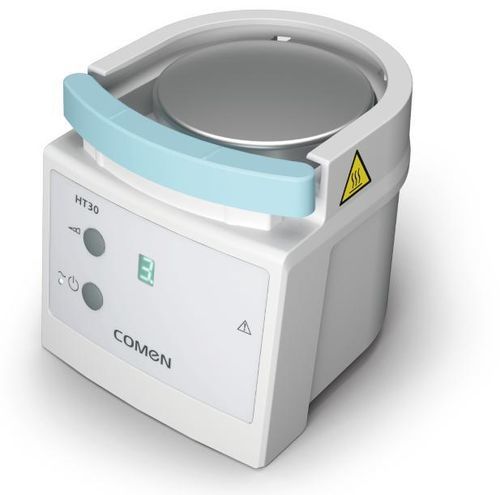

Electronic humidifier HT30

warmingrespiratoryheated

Overview
The HT30 Respiratory Humidifier is designed to deliver gas at controlled temperature and humidity to patients, preserving the normal physiological and defensive functions of the mucociliary system. Its intelligent humidification and adaptive heating provide stable, clinically appropriate humidification for advanced respiratory care.

Main selling points

• Intelligent humidity control delivering absolute humidity ≥12 mg/L.
• Three selectable heating modes to meet diverse clinical requirements.
• Automatic detection of heated-wire resistance with adaptive power adjustment for optimized heating efficiency.

Reliable protection, durable performance

• Waterproof design: Upper-and-lower enclosure minimizes risk of water ingress.
• Pressure-resistant design: Optimized aluminum heating plate and reusable humidification chamber withstand pressures above 300 cmH2O without leakage.
• Anti-screw-fall design: Vertical PCB mounting eliminates heating-plate fixing screws from falling, reducing risk of short circuit or fire.

Simple operation, clear interface
Intuitive user interface simplifies setup and monitoring, supporting efficient clinical workflow.

Intelligent humidity control

• Precise humidity management: Independent temperature control of the water chamber and breathing circuit ensures steady humidity delivery (≥12 mg/L).
• Automatic control algorithm: Adapts to ambient changes to maintain consistent humidity while minimizing condensation in the breathing circuit.
• Adaptive heated-circuit technology: Detects heated-wire resistance and dynamically adjusts power output to ensure reliable humidification performance.

Applications
Designed for respiratory therapy, including high-flow oxygen therapy and other clinical scenarios requiring precise control of gas temperature and humidity.

Technical specifications

• Model: HT30
• Brand: COMEN
• Absolute humidity output: ≥12 mg/L
• Heating modes: 3 modes
• Heating-wire resistance detection: Automatic detection with adaptive power control
• Temperature control: Independent control for water chamber and breathing circuit
• Protection: Waterproof upper-and-lower enclosure
• Pressure resistance: Withstands pressures above 300 cmH2O without leakage
• Heating plate: Optimized aluminum heating plate
• Humidification chamber: Reusable humidification chamber
• Safety design: Vertical PCB mounting to prevent screw-related failures
• Condensation management: Intelligent algorithm to minimize condensation in the breathing circuit
