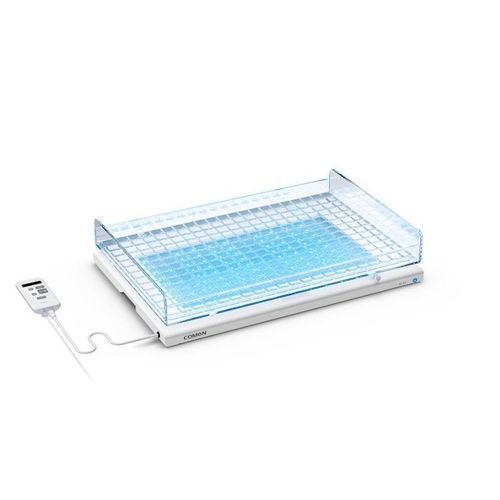

Infant radiant warmer mattress BL20

for incubatorfoam

Overview
BL20 Phototherapy Mattress is a neonatal device designed to deliver 360° sandwich phototherapy. It is intended to be used in combination with overhead phototherapy units (e.g. BL60/BL70) to expand effective treatment coverage while maintaining neonatal environmental stability.

Key benefits

• 360° sandwich phototherapy to increase effective irradiated area
• Improves overall therapeutic efficiency when combined with overhead phototherapy
• Reduces adverse stimuli and the risk of physical injury during transfers between devices
• Partitioned controller limits incubator opening to minimize heat and humidity loss

Partitioned controller — features

• 3 selectable intensity levels, up to 63 μW/cm²/nm
• Timer: count up or count down

Detached design — bottom phototherapy

• Detached bottom creates an air gap to slow temperature rise and improve treatment effectiveness
• Integrated compartment for X‑ray detector to facilitate imaging without removing the mattress

Applications and clinical notes

• Designed for neonatal phototherapy, particularly treatment of neonatal jaundice
• Used in NICU and delivery settings in combination with overhead units to provide continuous coverage

Specifications

• Model: BL20
• Product type: Phototherapy mattress (neonatal)
• Treatment mode: 360° sandwich phototherapy (used with overhead units such as BL60/BL70)
• Controller: Partitioned controller with 3 selectable intensity levels
• Maximum irradiance (stated): up to 63 μW/cm²/nm
• Timer: count up or count down
• Design: Detached bottom phototherapy with air gap to control temperature rise
• Feature: Compartment for X‑ray detector integration
