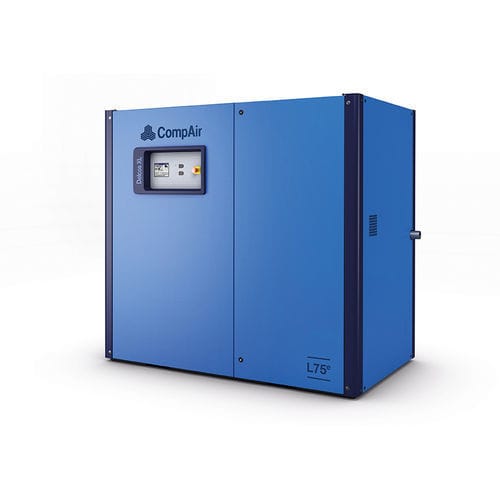

Medical air compression system L55
screw1-workstationlubricated

medical air compression system
medical air compression system
medical air compression system
medical air compression system
medical air compression system
medical air compression system
Add to favorites
Compare this product


Characteristics

Applications
medical
Technology
screw
Number of dental workstations
1-workstation
Options and accessories
lubricated
Pressure

Min.: 5 bar
(72.52 psi)

Max.: 13 bar
(188.55 psi)

Flow

Min.: 2.1 m³/min
(74.16 ft³/min)

Max.: 14.08 m³/min
(497.23 ft³/min)

Power

55 kW, 75 kW
(74.78 hp, 101.97 hp)

Weight

1,405 kg, 1,406 kg, 1,495 kg, 1,785 kg
(3,097.5 lb, 3,099.7 lb, 3,295.9 lb, 3,935.3 lb)

Noise level

Min.: 69 dB

Max.: 72 dB

Length

1,958 mm
(77.1 in)

Width

1,138 mm
(44.8 in)

Height

1,857 mm
(73.1 in)

Description

The 55 - 75 kW range of lubricated screw compressors comprises of fixed speed and regulated speed (RS) models. CompAir's 55 to 75 kW screw compressor range has been enhanced with 2 additional "e" models offering improved performance in this kW size while at the same time being around 10% smaller than comparable machines. The upgraded 55 to 75kW screw compressors from CompAir have only a 2.23m2 footprint for easier installation in more restrictive locations. The newly redesigned models offer quick release panel access for easier servicing, redesigned & improved service parts like separators & filters. With an efficiency improvement of up to 6.8%, and a higher flow rate up to 6% from the brand new airends, this improved performance and space saving ability delivers significantly lower lifetime costs. Designed & manufactured at the centre of excellence in Germany, the latest changes represent a continuing improvement to a range which has been developed over many decades. The new compressors are available in both fixed and regulated speeds – which can help reduce a system’s total cost of ownership significantly – as well as air-cooled and water-cooled options. The new models offer the following improvements: Re designed GD6 semi integrated airend with better performance that can reach 5-6 % improvement at high speed 3-8% efficiency improvement for complete package standard models. Smaller footprint by 11% compared to old models

VIDEO
