ion selective electrode
Polymer electrodes consist of various ion-exchange materials in an inert matrix such as PVC, polythene or silicone rubber.
Solid state electrodes utilise relatively insoluble inorganic salts in a membrane. Glass membrane electrodes are formed by the doping of the silicon dioxide glass matrix with various chemicals.
Two versions available:
•Refillable with replaceable membrane (ISE60B...ISE77B)
Gas sensing electrodes are available for the measurement of ammonia, carbon dioxides and nitrogen oxides. These electrodes have a gas permeable membrane and an internal filling solution.
One versions available:
•Flat replaceable membrane (ISE50B...ISE52B)

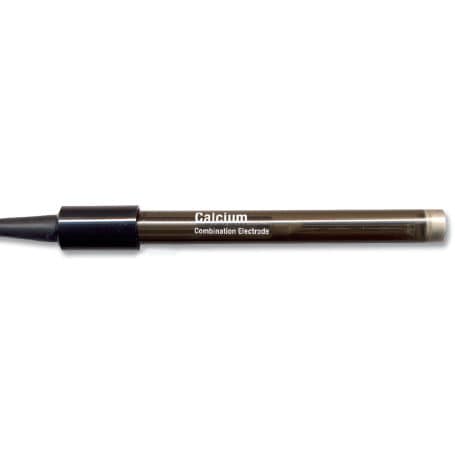

All models are combination electrodes and have an epoxy body.Dimensions: 110xØ12 mm
