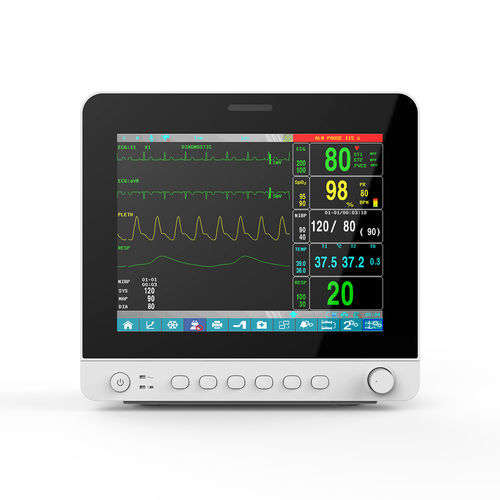

Portable patient monitor CMS9100Plus

bedsideECGTEMP

Introduction The monitor has abundant functions that can be used for clinical monitoring with adult, pediatric and neonate. Users may select different parameter configuration according to different requirements. The monitor, power supplied by 100 V-240 V ~ 50 Hz/60 Hz, adopts 12.1'' color TFT LCD displaying real-time date and waveform. It can synchronously display eight-channel waveform and full monitoring parameters equipped with an optional 48mm thermal recorder. The monitor can be connected to the central monitoring system via wire or wireless network to form a network monitoring system. This equipment is a portable monitor with touch screen, which can monitor such parameters as ECG, RESP, SpO2, PR, NIBP and dual- channel TEMP. It integrates parameter measurement module, display and recorder in one device to form a compact and portable equipment. At the same time, its built-in replaceable battery provides convenience for patient moving. Functions Standard parameters: ECG, RESP, SpO2, PR, NIBP, dual-channel TEMP 1) ECG Heart rate(HR) ECG waveform Arrhythmia and ST-segment analysis 2) RESP Respiration rate(RR) Respiration waveform 3) SpO2 Pulse oxygen saturation(SpO2) Plethysmogram(PLETH) waveform Pulse rate(PR) Bar graph 4) NIBP Systolic pressure(SYS), Diastolic pressure(DIA), Mean pressure(MEAN) 5) TEMP T1, T2, TD It has abundant functions, such as, touch-screen operation, audible and visual alarm, trend data storage and output, NIBP measurement, alarm event marking and drug concentration calculation, etc.
