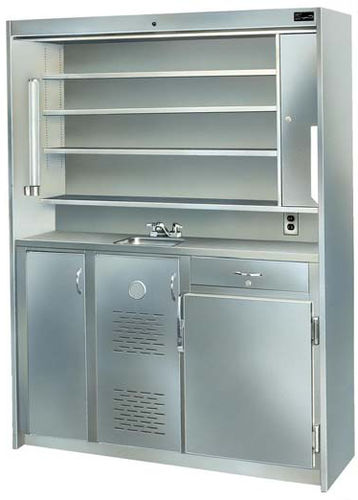

CMP Medicine Centers are high quality stainless steel combination cabinets and working units. Our Medicine Centers have been designed for the storage and functional requirements of the hospital and emergency room environment and have evolved into the industry standard for this application. CMP manufactures high quality stainless steel Medicine Centers in the USA and they are installed in hospitals in the U.S., along with many worldwide.
Stainless Steel Construction
Full Length Working Surface
Adjustable Stainless Steel Flat Shelves
Adjustable Pan Shelves
Storage Compartment – available on 60” (1524 mm)and 72”(1829 mm) units
Double-walled, Fully Insulated Refrigerator
Automatic Self-Defrosting Refrigerator
Locking Drawer Above Refrigerator
Narcotics/Hypnotics Cabinet with Locking Doors and Red Warning Light
24 Compartment Card Rack (not available on PL models)
Fluorescent Lighting (not available on PL models)
Removable Stepped Medication Shelves (available on PVS models)
Width: 36″, 48″, 60″, or 72″ (914 mm, 1219 mm, 1524 mm, or 1828 mm)
Depth: 26″ (660 mm) or 20″ (508 mm)
Height: 80” high (2032 mm)
CMP Medicine Centers are completely inter-wired, requiring only one single connection for each service. Required service connections are: ½ ” I. P.S. for hot and cold water supplies; 1 ½ ” I.P.S. for drain; 115 VAC, 15 Amp, single-phase, 60 Hz single electrical connection in circuit breaker panel. All servicing is performed from the front of the unit.
CMP Medicine Centers are constructed of type 304 stainless steel with No. 4 finish. Welding is done by the Heliarc process.
