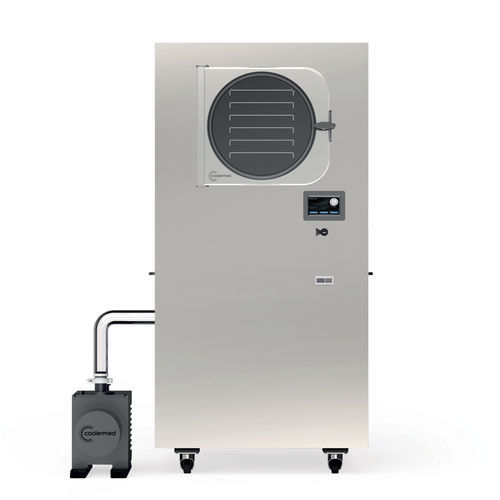

FD10
•Inner body material 304 AISI (Stainless Steel)
•Insulation Thickness 50 mm
• Operating temperature -40°/ +65°C
• Shelf Tray 304 AISI (Stainless Steel)
• FD energy consumption 22 kwh
• Tray loading volume 1.1 L
• Vacuum Pump 35 dB
• Transferring the values of the last 10 cycle (pressure, temperature and vacuum) to the computer via USB port.
The Importance and Benefits of Lyophilization
Lyophilization devices are mainly used in the pharmacy and biotechnology industries. The
freeze-drying method is preferred to extend the shelf life of vaccines and other injectable
products. By removing the water from the material and sealing the material in a vial, the
material can be easily stored, shipped, and then returned to its original form for injection.
• Maintaining the stability and effectiveness of drugs
• Convenient and easy storage
• To prevent aggregation and particle formation
• Preventing oxidation with air
• Smooth caked surface
• Sterile production facility
• Minimum product damage
• Correct dosage
• Repeatability
• Easy to scale (scale-up)
TECHNICAL SPECIFICATIONS
Width (mm) 785
Depth (mm) 1331
Height (mm) 1493
Volume (mm) 140
Loading Volume (lt) 1.1 lt/tray
Total Loading Weight (kg) 8/10
Gross Weight (kg) 270
Net Weight (kg) 250
Internal Body Material AISI 304
Insulation (mm) 50
Operating Temperature -40°C / +65°C
Number of shelves (trays) 10
Shelf (tray) Material AISI 304
Rack (tray) Size 222x500
Refrigerant R410a
Energy Consumption –
