Laboratory transilluminator pT-100

LED

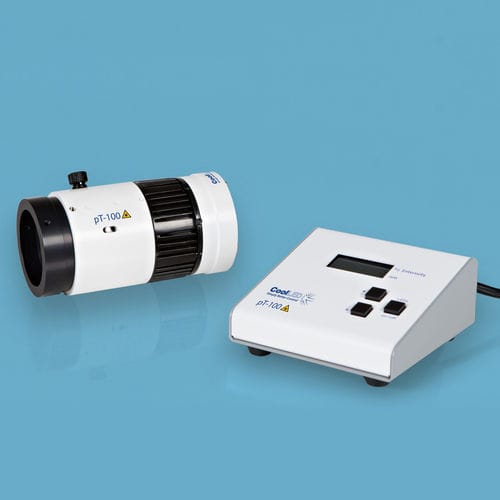

The pT-100 is a compact and simple-to-use LED illumination system for transmitted light applications, including brightfield, darkfield, DIC, Dodt gradient contrast and phase contrast. The system is available in four variants to bring the benefits of LEDs to modern laboratories. A broad white system provides a safer and convenient alternative to halogen by reducing harmful UV exposure to the eyes and is ideal for long hours spent at the microscope, while three narrow bandwidth options (525, 635 and 770 nm) optimise image quality through increased contrast. The pT-100-WHT and pT-100-770 nm are also available as variants with a 3 mm liquid light guide attachment, which is ideal for electrophysiology applications. Description Utilising the highly successful pE-100wht technology, we have further developed our LED solutions for Transmitted Light Applications with the pT-100 range. Whether you’re looking for a broad white 100 W halogen replacement or want to optimise the quality of your images through the use of narrower spectrum wavelengths, the pT-100 can meet your needs. CoolLED LED illumination technology offers a host of benefits over halogen systems, with instant on/off and irradiance control in 1% steps from the ergonomically designed manual control pod which can be positioned close at hand. Remote control is also available via a TTL trigger. A true 100 W Halogen replacement: pT-100-WHT Laboratories familiar with halogen lamps will find that CoolLED’s broad white achieves results which make the move to LEDs simple and apparent.
