Transport stretcher trolley galeno_2489-9

manual1 sectionremovable platform

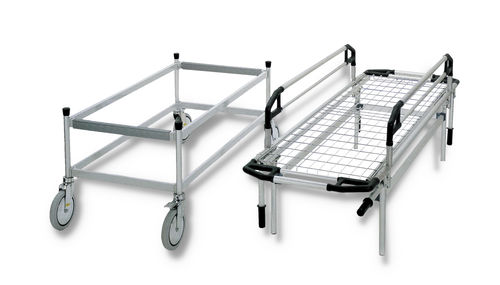

Description Removable stretcher with trolley & side rails main frame made of round anodized aluminium tube Ø 30 mm, provided with multifunctional polished cast aluminium joints for side rails and stretcher lifting pole lock on. Mattress platform cm 185x55 made of steel welded rigid mesh. Side rails frame made of round anodized aluminium tube Ø 30 mm and Ø 22 mm, provided with nylon parts with exclusive ergonomic design and with 3-position handle, for easy and safe handling. Easy to unlock and lower by rotation device. Push bar frame made of round anodized aluminium tube Ø 30 mm and Ø 22 mm. Support frame of the stretcher made of semi-oval 40x20 mm and round Ø 30 mm anodized aluminium tube with 4 PVC feet. Trolley made of semi-oval steel tube 40x20 mm with 2 PVC protective coverings and round anodized aluminium tube Ø 30 mm with 4 PVC protective caps; 4 swivelling castors Ø 200 mm, 2 with diagonal brakes. Steel coating RAL 1013 ivory epoxy powder (average coating 90 micron, 200°) by industrial robot. Prearranged to hold optional wire basket art. 2489/CPO (not included, to be ordered separately) and gas cylinder holder art. 2489/CPB-1 (not included, to be ordered separately). Maximum load kg 120 (mattress included). Overall dimensions of the stretcher about cm 200x63x78 high, overall dimensions of the trolley about cm 129x54x55 high, net weight about kg 33 + 17. Supplied in assembling kit, volume about 0,26 m³.
