Scan software module VXinspect

analysis3D viewingmeasurement

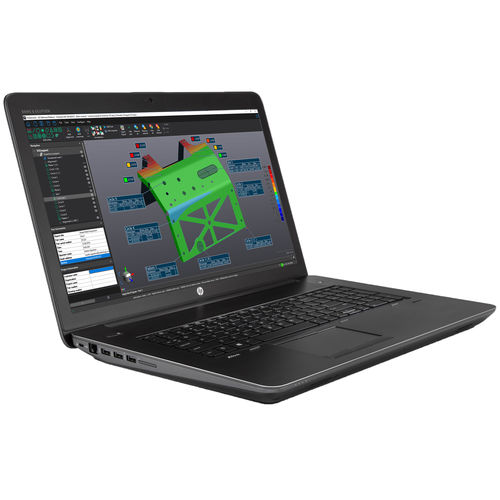

Previously called VXinspect, Inspection is an intuitive and powerful 3D inspection software designed for manufacturing companies conducting first article inspection (FAI) and production control. Inspection module features all the essential functionalities required to build a measurement sequence, resulting in high efficiency when controlling multiple parts. A built-in centralized panel displays all the information you can choose to export in the final report. Like other Creaform software modules, Inspection is directly integrated into Creaform.Os (previously known as VXelements), the Creaform 3D software platform and application suite. It provides the simplest integration of probing, 3D scanning and photogrammetry measurements to meet industry requirements for all quality control applications. The combination of Creaform technologies with Inspection offers the metrology software for shop‑floor environments. With its intuitive interface, it is the best solution for all inspection workflow, with no compromises made on measurement quality and GD&T requirements. Inspection has been entirely rethought in order to make it suitable for users of every type, with a wide range of expertise levels and workflow types. The following enhancements were made: Integrate photogrammetry, by supporting both the Creaform MaxSHOT 3D and the C‑Track as measuring devices. Inspections cans be performed directly from positioning targets and can additionally use a combination of targets and scan or probe data. Introduce a Quick Colormap feature, with a best fit photogrammetric‑model sent to the CAD file in order to deliver the colormap.
