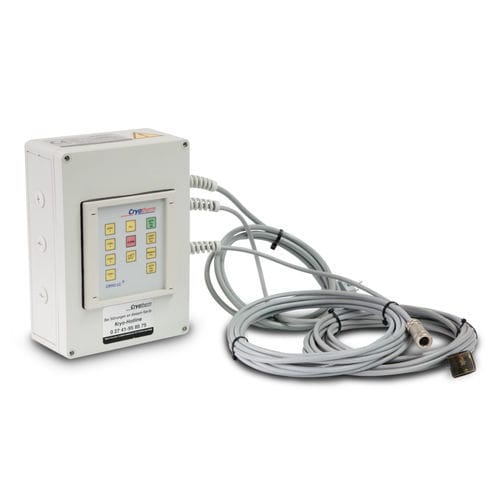

Monitoring control system CRYO LC®

Device for level detection and level control in containers and systems. CRYO LC® operates independently of pressure. Standard equipment —CRYO LC® CRYO LC® consists of the basic module as a built-in unit for C-rail with a level probe manufactured to customer specifications and the display and control unit (optional components) and housing. The CRYO LC® can be used in containers and systems of all sizes where the level probe can be installed. Pressure-independent operation Switch-on protection against manipulation and incorrect operation PLC-compatible interface Reliable control and regulation of filling levels. Functions Level detection: detection of 4 levels (LEVEL 1 to LEVEL 4), display and signal output (= potential-free changeover contacts). Level control: automatic control of the level between LEVEL 2 and LEVEL 3. In both functions, an alarm is triggered if the level falls below LEVEL 1, exceeds LEVEL 4 or sensor short-circuit or sensor wire breakage. Application The device can be installed in different ways: Compact unit, wired ready for operation, in housing with display and operating unit Switch cabinet installation, modular, CRYO LC® basic unit for mounting on C-rail, display and operating unit with ribbon cable ready for installation in the switch cabinet door Switch cabinet installation, modular, CRYO LC® basic unit for mounting on C-rail, without display and operating unit, control and signal polling can be done directly by a PLC two display and control units on one CRYO LC® basic unit (local and remote) Application examples: Phase Separators Dewars/Cryostats Cooling baths
