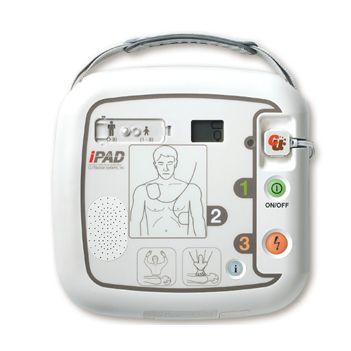

The IPAD CU-SP1 is a semi-automated external defibrillator (AED). If connected to a patient, the IPAD CU-SP1 automatically acquires and analyzes the electrocardiogram (ECG) of the patient for the presence of Ventricular Fibrillation or Ventricular Tachycardia (also known as shockable rhythms). If a shockable rhythm is detected, the device automatically charges itself. Defibrillating shock is delivered when you press the SHOCK button. The IPAD CU-SP1 is easy to use. It guides you throughout a rescue operation using voice prompts and indicators (LED and graphical indicators). The IPAD CU-SP1 is small, light, highly portable, and battery powered. It is highly suitable for use in public, out-of-hospital settings.
Functions and Features
Ambient noise detection [Auto volume adjusting]
Easy-to-use & manage Electrode (Displaying Life expectancy of Electrode)
CPR guide & Detection.
Dimension: 260 x 256 x 70 mm (Width x Length x Height)
Weight: Appr. 2.4kg (Including battery pack and pads) .
Operating Mode: Semi-automated, Full-automated
Waveform: e-cube biphasic (Truncated exponential type)
Output Energy: 150 J at 50 A load for Adults, 50 J at 50 A load for Children .
Power On Self-Test, Run-time Self-Test
Daily, Weekly, and Monthly Self-Test
Battery Pack Insertion Test (done when the user inserts the battery pack into the battery pack compartment of the device).
ECG Analysis System
Fucntion: Determines the impedance of the patient and evaluates the ECG of the patient to determine whether it is shockable or non-shockable
Impedance Range: 25? ~ 175? .
