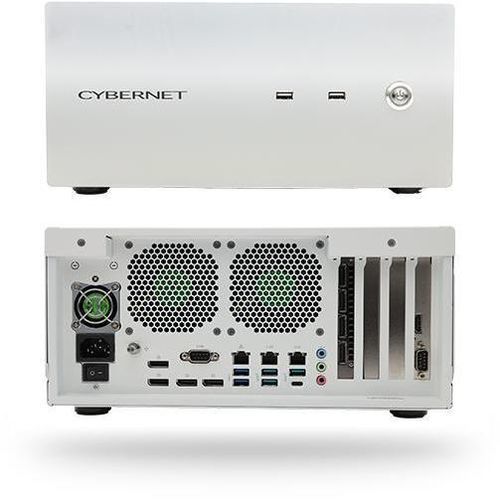

Intel® Core i3 medical box PC CyberMed Ai2

Intel® Core i7Intel® Core™ i9Intel® Core i5

Overview
Engineered with Intel® 13th/14th-Gen processors and NVIDIA RTX™ Blackwell graphics, the CyberMed Ai2 is a compact, IEC/UL/cUL 60601-1 certified medical edge AI workstation designed for scalable clinical edge analytics and real-time EMR data processing in clinical environments.

Key Features

• Latest Intel® i3/i5/i7/i9 13th/14th Generation processor support
• NVIDIA RTX™ (Blackwell) professional graphics support (up to RTX 4500/5000 options)
• Up to 128GB DDR5 memory (4x U-DIMM slots)
• High-availability RAID storage with 7x SATA Gen 3.0 ports (RAID 0,1,5,10)
• UL60601-1 / IEC60601-1 medical electrical safety certified
• Triple RJ45 LAN (1x Intel i210AT 1Gb + 2x Intel i226 2.5Gb including vPro support)
• Multiple PCIe expansion slots for AI accelerators and capture cards

Mainstream Clinical AI Processing
Supports NVIDIA RTX™ GPU configurations and up to 128GB DDR5 memory, optimized for real-time EMR analytics, diagnostic workflows, and machine learning inferencing at the point of care. The unit is designed to process mainstream clinical AI models and deliver low-latency, on-premise inference for healthcare workloads.

Optimized Footprint for Point-of-Care
Compact chassis measuring 13.00" x 12.56" x 6.00" (L x W x D) and weighing approximately 17.8 lbs. The slim 6-inch depth and universal mounting support enable horizontal or vertical mounting on medical mobile carts, workstation arms, thin wall mounts, or compact nursing stations.

Certified Patient Safety & EMC
Fully certified to UL60601-1, cUL60601-1, IEC60601-1, and IEC60601-1-2 standards to ensure low leakage current and electromagnetic compatibility suitable for near-patient deployment and sensitive clinical environments.

High-Availability Storage & Expandability
Equipped with 7x SATA Gen 3.0 ports supporting RAID 0, 1, 5, and 10 for local data redundancy. Multiple PCIe 5.0 and 4.0 expansion slots provide room for specialized surgical video capture cards, medical frame grabbers, or secondary AI accelerators.

Network & Multi-Display Support
Built-in triple RJ45 LAN architecture (including two 2.5Gb ports and one 1Gb port with Intel vPro support) for isolated connections to hospital intranets, imaging arrays, and telemetry lines. Display output supports DisplayPort x4 (DP++ 1.4) up to 3840 x 2160 @ 60Hz and powers up to four 4K displays.

Deployment & Enterprise Readiness
Enterprise-ready platform validated across Windows 11, Windows IoT, and Linux. Supports pre-configuration services such as custom OS imaging, BIOS tuning, asset tagging, and drive imaging for plug-and-play delivery and faster clinical deployment.

Technical specifications

• CPU Support: Intel® 13th / 14th Generation Core™ i3, i5, i7, & i9 Processors
• Chipset: Intel® Q670E Chipset
• Memory: 4x U-DIMM Slots (Up to 128GB DDR5, 4400/5600MHz depending on configuration)
• Operating System: Windows 11, Windows IoT, Linux
• Display: DisplayPort x4 (Supports DP++ 1.4, up to 3840 x 2160 @ 60Hz)
• AI/ML Card: Up to NVIDIA RTX™ 4500 Blackwell (options up to RTX 5000 available)
• PCIe Slots: 1x PCIe 5.0 x16 (1x16 or 2x8), 1x PCIe 5.0 x16 (x8 mode), 2x PCIe 4.0 x4 (X4 mode)
• M.2 Slots: 1x M.2 E Key Type 2230 (WiFi/BT), 1x M.2 M Key Type 2242/2260/2280 (PCIe x4 / SATA, NVMe support)
• Networking: 1x Intel i210AT 1Gb, 1x Intel i226V 2.5Gb, 1x Intel i226LM 2.5Gb (vPro supported)
• Storage: 7x SATA Gen 3.0 (Up to 6Gb/s) with RAID 0, 1, 5, 10 support
• Dimensions (L x W x D): 13.00" x 12.56" x 6.00"
• Weight: 17.8 lbs
• Environment: Operating Temp 0°C ~ 40°C; Storage/Transport -20°C ~ 70°C; Operating Humidity 10% ~ 90% (non-condensing); Storage Humidity 10% ~ 90% (non-condensing); Transport Pressure 540-1060 hPa (0-5000m)
• Certifications: UL60601-1, cUL60601-1, IEC60601-1, IEC60601-1-2, FCC Part 15, ICES-003, CE, EU RED, Energy Star, RoHS, WEEE, REACH, CA Prop 65, ISTA 3A
• I/O Ports: 2x USB 3.0 (front), 4x USB 3.2 (3x Type A, 1x Type C), 3x RJ45 Ethernet, 1x Serial (RS232/422/485), 1x Microphone Jack, 1x Line Out, 1x Line In
• Warranty: 3 Years standard with optional plans up to 5 Years (regional terms apply)
