Intel® Core™ Ultra 5 medical box PC CyberMed R60

Intel® Core™ Ultra 7operating roomfor medical imaging

Product Overview

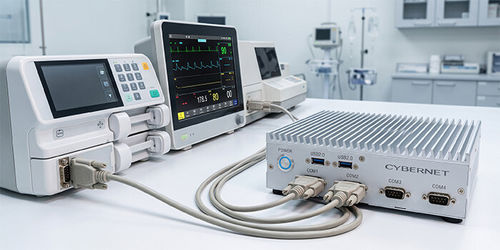

The CyberMed R60 is a fanless, ultra-compact medical box PC engineered for integration into anesthesia machines, surgical booms, diagnostic carts and other OEM medical devices. It provides desktop-class performance in a sealed, sterile-capable enclosure and is designed for headless operation where zero audible noise and a minimal footprint are required.

Key Features

• 100% fanless, sealed design for in-enclosure and sterile-area mounting
• IEC 60601-1 medical-grade power supply (low-leakage current)
• Native RS232/422/485 serial ports — no USB-to-serial adapters required
• Dual 4K display support via HDMI and DisplayPort outputs
• Desktop-class Intel Core Ultra 5/7 Series 2 processors
• Memory up to 96GB DDR5 and NVMe SSD storage support
• OS support: Windows 11 (Pro / IoT / Enterprise), Windows 10 IoT, and Linux
• Multiple mounting options: VESA, DIN-rail, wall and pole mounts

Comparison (High-level)

• Safety certification: CyberMed R60 — IEC 60601-1 (patient-safe) | Consumer mini PC — UL 60950 / UL 62368 (office use)
• Cooling system: CyberMed R60 — fanless sealed (no airborne contamination) | Consumer mini PC — active fan
• Product lifecycle: CyberMed R60 — 5–7 years | Consumer mini PC — 12–18 months
• Legacy ports: CyberMed R60 — native RS232/422/485 | Consumer mini PC — requires dongles
• Mounting: CyberMed R60 — VESA / DIN rail / wall / pole | Consumer mini PC — VESA only

Applications

• OEM integration into ventilators, C-arms, anesthesia machines and other enclosed medical devices
• Mounting behind surgical and clinical displays for PACS and surgical dashboards
• Retrofit of mobile medical carts to provide Windows 11 and EMR compatibility
• Continuous 24/7 operation in critical care and clinical environments

Notes
Designed for healthcare environments with native legacy serial connectivity and a medical-grade power supply meeting IEC 60601-1 requirements. Engineered for continuous operation using industrial-grade components with a quoted annual failure rate below 0.5%. IEC 60601-1 (4th Edition) also addresses electromagnetic compatibility to reduce interference with bedside equipment.

Caractéristiques / spécifications techniques

• Model: CyberMed R60
• Processor: Intel Core Ultra 5 / Core Ultra 7 (Series 2) — desktop-class performance
• Memory: Up to 96GB DDR5 RAM
• Storage: NVMe SSD support
• Display: Dual 4K outputs (HDMI + DisplayPort)
• Connectivity: Native RS232/422/485 serial ports; multiple USB 3.x ports
• Power: IEC 60601-1 medical-grade power supply (low-leakage current)
• Cooling: 100% fanless, sealed thermal design
• OS Support: Windows 11 (Pro / IoT / Enterprise), Windows 10 IoT, Linux
• Dimensions: Ultra-compact 7.9 x 7.6 in footprint
• Mounting: VESA, DIN rail, wall and pole mounting options
• Lifecycle: Designed for a 5–7 year product lifecycle
• Reliability: Industrial-grade components for continuous 24/7 operation; quoted fail rate <0.5% annually
• EMC/EMI: Certified to IEC 60601-1 (addresses electromagnetic compatibility for medical environments)
