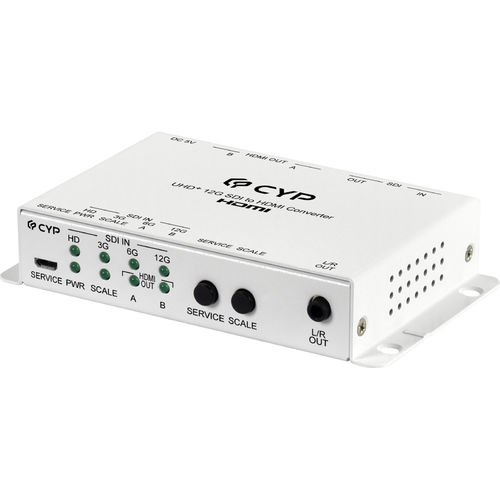

Interface converter CPLUS-SDI2H-W

for healthcare IT networkoperating roomSDI-12

12G-SDI to HDMI Converter ．Supports SDI output distance up to 60 meters (12G-SDI), 80 meters (6G-SDI) 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI) Note: 1. Tested with Belden 1694A Cable. Operating distances may vary if used with cables of different specifications. 2. This product does not process HDCP encrypted input signals. There will be no video output when the input signal contains content that is HDCP encrypted. ．Integrated audio embedded up to 8 CH PCM 48 kHz for HDMI or 2 CH (external L/R) for DVI audio ．Support SDI signal re-timing Cable Driver The SDI to HDMI Converter allows SD, HD, 3G and 12G-SDI signals to be shown on HDMI display. This means that it is now easier for professionals to distribute and extend their SDI signal while giving the ability to display work on HDMI displays. Furthermore, thanks to L/R audio outputs users can output audio in analog formats while the loop-through 12G-SDI design benefits users by letting them simultaneously show content on both SDI and HDMI displays.
