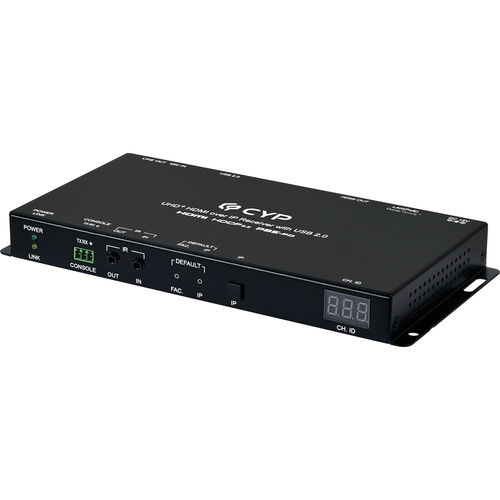

Video signal receiver AVIP-A4601D-B1C

USB4K

4K@60 HDMI over IP Receiver with USB 2.0 • 4K@60 1Gbps AV over IP transmitter in Unicast or Multicast mode. • IP interface: RJ45 • Supports comprehensive USB over IP functionality (USB flash drive, keyboard and mouse) and seamless collaboration across multiple windows • Supports PoE-PD (IEEE 802.3af). • Support IP to IR/ RS-232, converting the IP signal into IR and RS-232 commands for device control. • Controlled via hotkey, WebGUI, IP Master Controller, and Telnet • Supports the use of an external control center (IP Master Controller) to provide expanded functionality (Contact your authorized dealer for more information) • 7 hotkeys dedicated to routing for transmitters and receivers, 4 hotkeys provide single functions, and 3 hotkeys for multiple functions that activates control system • Supports independent breakaway A/V and control matrix routing • Supports extension of many audio formats including 8 channel LPCM and standard Bitstream Note: The Line Out only supports LPCM 2.0 sources. • The analog Line In is automatically embedded in the streaming output and can be independently routed to any receiver • The Mic In sends audio directly to the analog Line Out on the currently routed transmitter Note: Only available when the transmitter also has its Line In connected. • Optional Dante ReadyTM is compatible with existing Dante and AES67 audio networks • Dante Ready brings Dante functionality to products already shipping and installed in sites • Channels and features can be added as an installation grows
