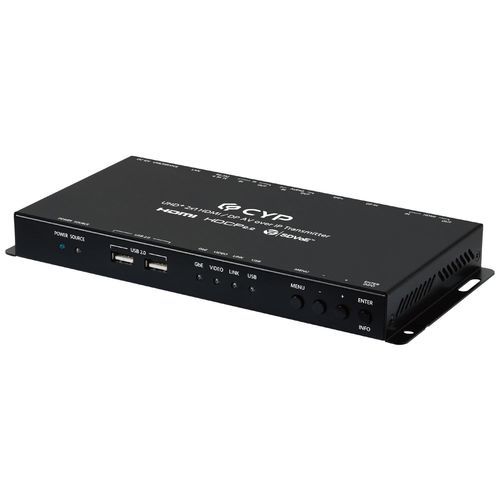

Video signal transmitter AVIP-P5104T-B1F

4KFiber

UHD+2x1 HDMI/DP AV over IP Transmitter with PreviewZero latency transmission for all signal types including 4K@60 RGB/ YUV 4:4:4, HDR10, 3D and broadcast-friendly 4K@60 10-bit 4:2:2Supports pass-through of 10/12-bit HDR sources (Point-to-Point and Bypass modes only)Analog stereo audio extension, insertion and extraction (insertion and extraction requires optional IP Master Controller/control software)Broadcast quality scaler, programmable to scale up or down any resolutions up to 4K with color space conversion and frame rate conversionAudio down-mixing engine from multi-channel PCM audio to stereoSignal transmission interfaces with 10-Gigabit Ethernet switches via XFI (IEEE 802.3ae) compatible SFP+ fiber modulesBasic configuration via front panel buttons with an On-Screen Display (OSD)This transmitter enables high-quality, IP-routable AV extension with minimal latency. Using ultra-light compression (lossless for most content), it supports 4K audio/video and data transmission. The fiber optic port works with both singlemode and multimode modules, extending signals up to 120 km in point-to-point mode.When paired with an IP Master Controller or control software, it supports advanced functions like video matrix, multiview, and video wall modes, ideal for large-scale installations. Its exclusive preview technology enhances traditional AV over IP solutions, meeting the demands of long-distance, high-quality transmission.Type: videoOptions: 4K, Fiber
