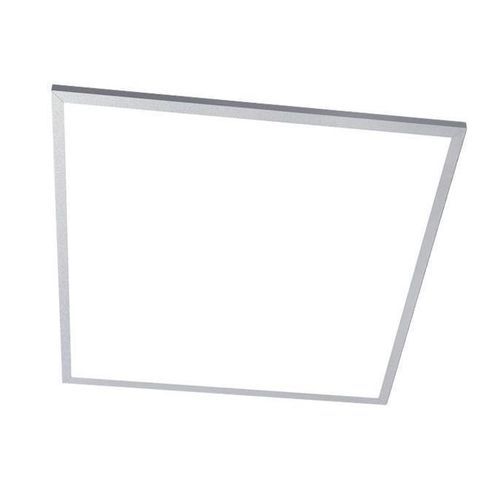

Hospital LED panel LP50

built-inrecessedfor ceiling

Overview
The D-TEC LED Panel LP50 is a recessed general ceiling luminaire designed to replace standard ceiling tiles in suspended ceilings. It provides dimmable, uniform illumination with high colour rendering and low energy consumption and is supplied complete with LED driver. The product is suitable for clinical and medical treatment areas where even, glare-controlled lighting and hygienic design are required.

Key attributes

• For demanding clinical and medical environments
• Maintenance-free and hygienic design
• High colour rendering for accurate visual tasks

Features

• Shadow-free illumination: Hundreds of LEDs and integrated microprisms distribute light evenly across the work surface to minimise shadows and support precise clinical tasks.
• Glare-free comfort: The light guide and microprism diffuser reduce direct glare to improve ergonomics for staff and comfort for patients during examinations and treatments.
• Low energy consumption: Efficient LED technology delivers required illuminance with reduced power use, supporting energy management in healthcare facilities.
• Minimal heat emission: Aluminium housing provides effective thermal management to limit heat in the room and support controlled ambient conditions.

Technical specifications (table)
Product: LP50
Light source: LED 48 W
Illuminance: 1300 lux / 1.2 m
Colour temperature: 5700 K CRI 94
Dimensions: 600 × 600 × 10 mm
Weight: 4 kg
Rating: IP30
Includes: Dimming function

Technical specifications

• Model: LP50
• Light source: LED 48 W
• Illuminance: 1300 lux / 1.2 m
• Colour temperature & CRI: 5700 K, CRI 94
• Dimensions: 600 × 600 × 10 mm
• Weight: 4 kg
• Ingress rating: IP30
• Includes dimming function
