Automated sample preparation system PathDR.™ NS40

fully automatedroboticlaboratory

Product Overview

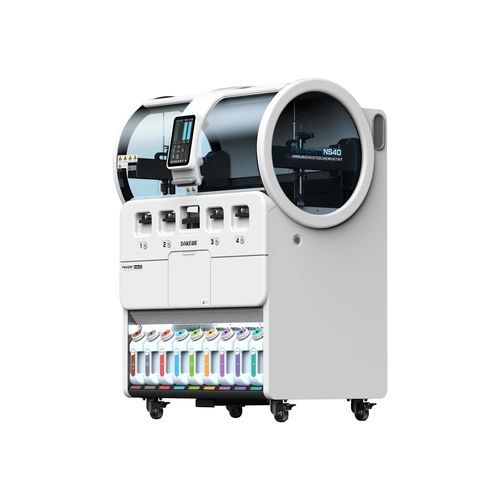

PathDR.™ NS40 IHC stainer by Dakewe Medical is a fully automated immunohistochemistry stainer intended for In Vitro Diagnostic use. It runs 40-slide cycles with continuous tray reload and supports overnight operation to increase throughput.

Features

• Efficient — Reduced turnaround time via dual robotic arms: a 40-slide run completes in approximately 2.5 hours. With an additional overnight run, up to 160 slides can be processed within 24 hours. Reagent-efficient dosing and precise temperature control reduce reagent consumption and waste. Individual heating: SSA temperature can be set individually up to 110°C to accommodate varied staining protocols.
• Ensured quality — Optimized reagent distribution: the Dakewe cover lid is designed to minimize reagent volume. Tracked usage: each cover lid carries a unique DataMatrix code readable by the stainer to monitor usage and prevent compromised staining from damaged lids.
• Clear and fresh outcome — Engineered rinsing steps reduce non-specific background and the coffee-ring effect, improving slide clarity.
• Ergonomic — Transparent smooth-sliding cover allows easy visual inspection and simple opening/closing.
• Intuitive — Touchscreen control enables start/pause and displays reagent container status for prompt intervention.

Specifications
Dimensions (W × D × H): 1155 × 900 × 1620 mm
Weight: Approx. 350 kg
Power: 100 - 240 VAC, 50/60 Hz, 1000 VA
Process: Fully automated from baking to counterstain
Techniques: IHC, ISH, ICC, FISH, double stain, multiplex stain
Slide capacity: 10 slides/tray, 4 trays; finished slide trays can be reloaded continuously
Turnaround time: 2.5 - 3.5 hours per run
SSA temperature: Ambient to 110°C, ±1°C
Bulk reagent container capacity: 5 L
Reagent container capacity: 6 ml, 7 ml, 30 ml
Reagent container quantity: 40
Waste container capacity: 5 L (separate hazardous and non-hazardous)

Technical specifications

• Model: PathDR.™ NS40
• Brand: Dakewe Medical
• Dimensions (W × D × H): 1155 × 900 × 1620 mm
• Weight: Approx. 350 kg
• Power supply: 100 - 240 VAC, 50/60 Hz, 1000 VA
• Process: Fully automated from baking to counterstain
• Supported techniques: IHC, ISH, ICC, FISH, double stain, multiplex stain
• Slide capacity: 10 slides/tray, 4 trays (continuous reload supported)
• Turnaround time: 2.5 - 3.5 hours per run; up to 160 slides in 24 hours with overnight runs
• SSA temperature range: Ambient to 110°C (±1°C)
• Bulk reagent container capacity: 5 L
• Reagent container sizes: 6 ml, 7 ml, 30 ml (quantity: 40)
• Waste container capacity: 5 L (separate hazardous and non-hazardous)
