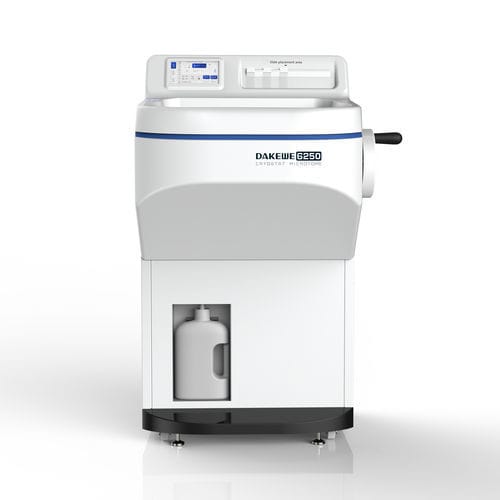

Rotary microtome cryostat 6250

semi-automaticmotorizedprogrammable

6250 – DAKEWE CRYOSTAT MICROTOME Modular Control System touch screen and handwheel operation. Defrost automatically / manually. Hibernation automatically / manually, wake up in 15 minutes. UVC sterilization. Semi-conductor refrigerant. Section number and thickness calculation. Appearance One-time injected model cover. Anti-fog heating glass design. 8 inch color LCD touch screen. Safety and Quality Light hand wheel with locking device. Orientable specimen head: 12° on x-, y-axis, 360° for z-axis High precision guide rails made in Germany make transmission smooth, durable and be able to cut hard sample. Retraction function is available. Freezing Chamber Extra large chamber with wide freezing shelf may hold 20 specimen discs meanwhile. With waste tray and instrument rack. Blade Holder Compatible with high and low profile disposable blades . Adjustable lever ensures stable blade holder. Blade holder can be moved horizontally on the guide rail for safety and making full use of blade. Anti-rolling plate is horizontally, verticality adjustable, and also able to adjust angle and gap with pressing plate. Blade ejector pops the blade out easily. TECHNICAL SPECIFICATIONS -section thickness: 1 μm - 100 μm -trimming thickness: 1μm - 600 μm -retraction: 0μm – 200 μm -increment speed: 300 μm/s (+/- 10 %) , 900 μm/s (+/- 10 %) -chamber temperature: -35 °C - +40 °C -minimum freezing plate temperature: -40 °C (+/- 5°C) -number of freezing plates:18 -rapid cooling Peltier stations:2pcs -minimum temperature Peltier station: -60°C (+/- 5°C) -size (with handwheell): 780 x 700 x l280 mm -weight: 140 kg -power consumption: 1200 VA -supply voltage: 220-240 / 110 VAC -frequency: 50 / 60 HZ
