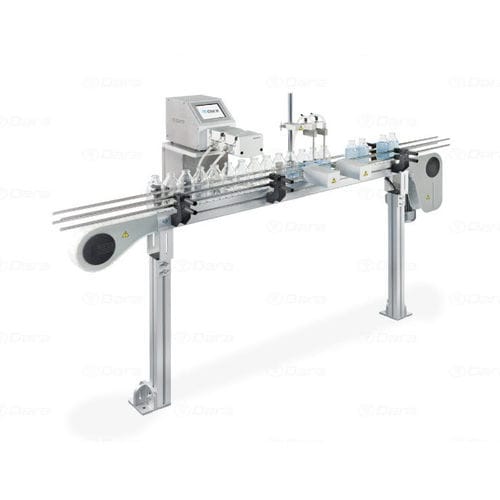

Linear machine for automatic filling of bottles and vials.
Low cost / Filling from 0.1 up to 1,050 ml. / Changeover to a different format in 5 minutes / Output up to 3,000 uph.
The equipment we present is a linear filling machine for automatic processing of vials and bottles in glass, plastic, or metal, for liquid, semisolid, and powder products, in sterile areas or clean rooms.
The design has been made for use in sterile areas, in compliance with cGMP and US FDA regulations, and in special accordance with the requirements of the pharmaceutical, biotech, cosmetic, chemical and similar industries.
The filling station is equipped with a maximum of 6 peristaltic pumps, valveless rotary piston pumps, or powder dosers.
Filling recipes are saved in the PLC and can be loaded from the HMI. New recipes can be easily created and edited.
The changeover to a different format can be carried out quickly and without tools. The adaptation to different heights of containers is made through digital positioning gauge.
This equipment is suitable for clinical trials or medium production batches.
Diving nozzle system.
Gas flushing before, during, or after the filling process.
Laminar flow unit / RABs / Isolator unit.
Ex-proof electric execution (Atex).
IQ / OQ validation package.
Printing / Codification.
