Pressure tester venTest

flowfor respiratory ventilatorsfor anesthesia workstations

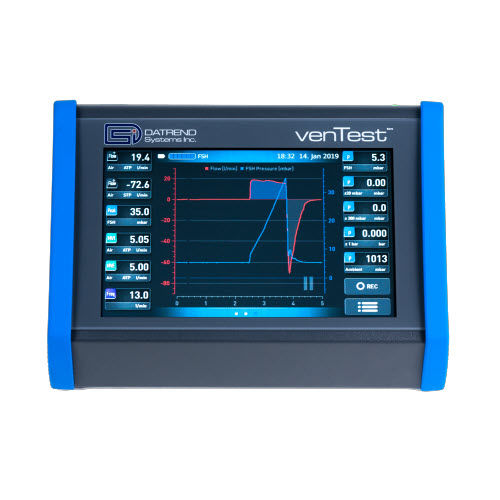

A compact, portable and easy-to-use device for testing ventilators and anaesthetic delivery systems of virtually any type Its compact design makes it suitable for testing Ventilators and Anaesthetic systems of virtually any type Equipped with an internal rechargeable battery, enabling mobile operation without a mains connection On-board Graphical Display enables the generation of Pressure and Flow waveforms without the need of a laptop Optional multi-gas analyzer User-defined test procedures and associated report forms can be stored and retrieved from the removable SD card or USB external memory Accuracy and Portability venTest is designed to accurately test the performance of Ventilators and Anaesthetic systems. Data analysis and waveforms are generated on-board and displayed on its 7″ touch screen display – no need to carry around a laptop. With a small footprint and internal rechargeable battery, venTest is a very portable Ventilator Test System. 7” capacitive widescreen display with LED backlight Intuitive graphical operating interface for measuring devices FlowSense bidirectional airflow sensors (±300 l/min or ±12 l/min) Automatic flow sensor detection 2 measured curves displayed simultaneously 11 numeric parameters displayed, freely configurable Compatible with vPad Platform
