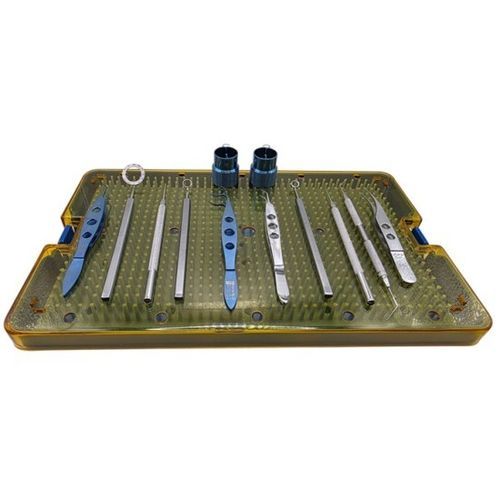

Ophthalmic surgery instrument kit D100-1119

Overview
This instruments set is designed to support Keraring corneal ring implantation procedures, providing measurement, tunnelling and handling tools required in the operating theatre.

Set contents

• D30-7900 — Mendez Gauge
• D30-105 — Double Sinskey Hook
• DT30-106 — Intrastromal Tunnel 5mm R, ø20.5mm, 25mm, 6mm wire height
• DT30-107 — Intrastromal Tunnel 5mm L, ø20.5mm, 25mm, 6mm wire height
• DT30-108 — Intrastromal Tunnel 6mm R, ø20.5mm, 25mm, 6mm wire height
• DT30-109 — Intrastromal Tunnel 6mm L, ø20.5mm, 25mm, 6mm wire height
• DT50-5032 — Titanium implantation McPherson forceps angled with notch
• DT50-1571 — Titanium corneal fixation forceps
• DT30-8138 — Titanium optical zone marker 5mm
• DT30-8142 — Titanium optical zone marker 6mm
• D30-0025 — Micro dissector straight
• D30-5192 — Straight Sinskey manipulator 1mm tip; Suarez spreader
• D50-SC20 — Re-usable Colibri forceps 1x2 teeth, 0.12mm
• D90-2030 — Plastic tray with silicone matt for Keraring instruments set

Technical specifications

• Product code: D100-1119
• Commercial name: Keraring Instruments Set
• Includes titanium instruments: DT50-5032, DT50-1571, DT30-8138, DT30-8142
• Optical zone marker sizes: 5 mm and 6 mm
• Intrastromal tunnel instruments: 5 mm and 6 mm variants, left and right; specified dimensions ø20.5 mm, 25 mm length, 6 mm wire height
• Tray: plastic tray with silicone matt (D90-2030)

Intended use

• Designed for use during implantation of Keraring intrastromal corneal ring segments and related corneal procedures.
• Provides measurement, intrastromal tunnelling and handling capabilities for ophthalmic surgeons trained in corneal ring implantation techniques.

Packaging and maintenance

• Instruments are reusable; titanium components included for corrosion resistance.
• Supplied in a dedicated plastic tray with silicone matt for secure storage and organization.
• Follow manufacturer's instructions for cleaning, sterilization and maintenance prior to clinical use.
