Portable veterinary ultrasound system L6i-VET

multipurposefor dogsfor small animals

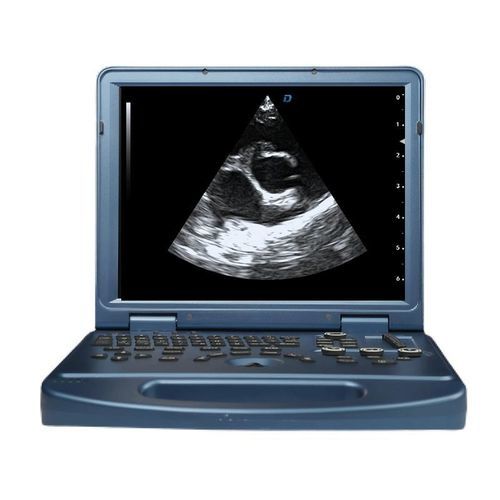

Product Overview The L6i-VET Color Doppler Ultrasound Machine is an advanced, affordable, and portable imaging solution designed specifically for veterinary use. Tailored for small animals and pet healthcare professionals, this compact notebook-style system integrates cutting-edge Doppler ultrasound technology, GPU-accelerated computing, and intuitive diagnostic tools to deliver high-resolution imaging for daily clinical needs.

Applications

• Pet Hospitals & Veterinary Clinics – Ideal for diagnosing dogs, cats, and other small animals.
• Animal Research Institutions – Reliable imaging for veterinary science and research labs.
• Field Veterinary Use – Portable design suits mobile and rural animal health services.

Performance
Powered by a hybrid CPU + GPU architecture, the L6i-VET achieves:

• 5x faster computing power
• 10x quicker image response
• 2x higher frame rate

This allows real-time acquisition and crystal-clear visualization of anatomical structures using advanced Doppler ultrasound technology.

Superior Imaging Modes

• B/C/D triple real-time imaging
• Pulse Wave (PW) & Continuous Wave (CW) Doppler
• Color Flow Doppler, Tissue Doppler Imaging (TDI), Directional Power Doppler
• Real-time 3D/4D imaging, strain rate imaging, harmonic fusion imaging (FHI), and panoramic wide-field views
• Omniview free-plane slicing for unrestricted viewing angles

Smart Features

• Over 3000-frame cine loop playback
• Built-in 256GB solid-state drive for fast, stable system performance
• Customizable organ presets for optimized imaging workflows
• Internal report editor with image integration and PDF printing
• Multi-language file management system (including English and Chinese)
• Supports seamless DICOM integration for hospital information systems

Probe

• High-density probes with cutting-edge beamforming and precise A/D conversion
• Crystal vibration control to enhance boundary sharpness and reduce artifacts
• Strain Elastography & Needle Enhancement for biopsy and interventional guidance
• Fully adjustable probe angles with puncture enhancement for safe navigation

Why Choose L6i-VET?

• Designed specifically as a pet ultrasound scanner for dogs and cats
• Combines affordability with the performance of high-end veterinary Doppler ultrasound
• Excellent for cardiovascular, abdominal, and musculoskeletal diagnostics in small animals
• Ideal entry-to-mid range option for clinics expanding into color Doppler imaging

Clinical Images

• Cat’s Liver
• Dog’s Adrenal glands
• Dog’s kidney

Key Features / Technical Specifications

• Model: L6i-VET
• Portable notebook-style veterinary color Doppler ultrasound system
• Hybrid CPU + GPU architecture
• Supports B/C/D triple real-time imaging, PW & CW Doppler, Color Flow Doppler, TDI, Directional Power Doppler
• Real-time 3D/4D imaging, strain rate imaging, harmonic fusion imaging, panoramic wide-field views
• Omniview free-plane slicing
• Over 3000-frame cine loop playback
• 256GB SSD storage
• Customizable organ presets
• Internal report editor with PDF printing
• Multi-language file management (English, Chinese)
• DICOM integration
• High-density probes, strain elastography, needle enhancement, adjustable probe angles
