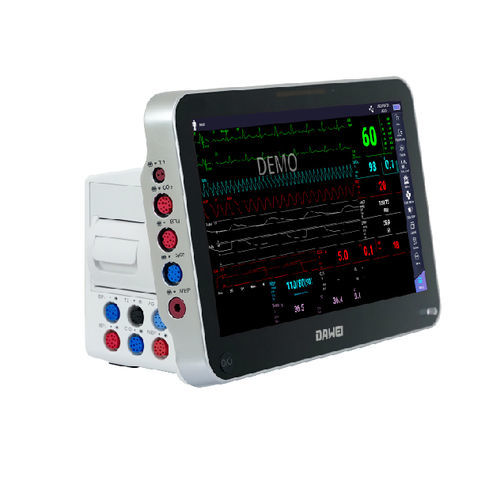

Modular multi-parameter monitor HD12/HD15

ECGRESPSpO2

Overview
A modular multiparameter patient monitor designed for clinical environments including operating theatres, recovery rooms, ICU/CCU wards and emergency departments. Suitable for adult, pediatric and neonatal monitoring, it measures ECG (including ST segment and arrhythmia analysis), RESP, SpO2, PR/HR, NIBP, TEMP, IBP and CO2. Monitoring data can be displayed, reviewed, printed and stored.

Models
Model: HD20, HD21

Display & hardware features

• Screen sizes: 15.6‑inch or 13.3‑inch HD capacitive touchscreen
• Wide viewing angle: 170° with adjustable brightness
• Large‑font display; supports simultaneous 7+1 lead ECG presentation
• Connectivity ports: 2 × USB and 1 × Type‑C for fast data transfer
• Rechargeable lithium battery with continuous operation time ≥ 300 minutes

Monitored parameters

• ECG with ST segment measurement and arrhythmia analysis
• RESP (respiration)
• SpO2 and PR/HR
• NIBP (non‑invasive blood pressure)
• TEMP (temperature)
• IBP — upgradeable to up to 4 invasive pressure channels, including simultaneous PPV monitoring during arterial pressure measurements
• CO2

Functions & clinical features
The monitor supports wired and wireless connection to central monitoring systems and Bluetooth for data transmission and external device interfacing. It can be upgraded for invasive pressure monitoring (up to 4 channels) and provides simultaneous real‑time display of multiple ST segments (inferior, lateral, anterior). Clinical support includes Glasgow Coma Scale (GCS), clinical scores MEWS and NEWS with timed automatic EWS calculation, and a timer interface supporting ≥4 independent timers (count up and countdown).

Design & usability
The modular design allows customization, easy servicing and clinical expansion. The user interface is optimized for rapid patient assessment with clear visual layout and configurable display options to suit ICU, OR and ward workflows.

Accessories (examples)

• ECG lead wires
• Blood pressure cuff
• Body cavity temperature probe
• Blood pressure extension tube
• Disposable electrode pads
• SpO2 probe

Technical specifications

• Models: HD20, HD21
• Screen: 13.3" or 15.6" HD capacitive touch
• Viewing angle: 170°
• Display: adjustable brightness, large‑font support, 7+1 leads waveform
• Ports: 2 × USB, 1 × Type‑C
• Battery: Lithium, operation time ≥ 300 minutes
• Connectivity: Wired and wireless central monitoring; Bluetooth supported
• Invasive pressure: Upgradeable up to 4 channels with simultaneous PPV monitoring
• ECG/ST: Simultaneous multi‑segment ST display (inferior, lateral, anterior)
• Clinical scoring: MEWS and NEWS with automatic/timed EWS calculation
• GCS: Supported
• Timer: ≥4 independent timers (count up / countdown)
• Design: Modular, serviceable and scalable for clinical expansions
