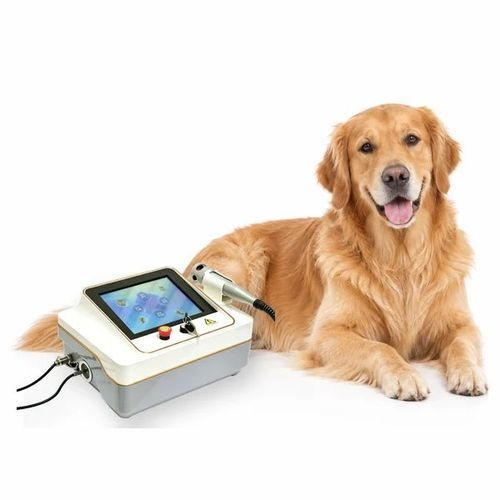

Veterinary surgery laser ALT-100A/B

veterinary biostimulationdiodetabletop

Product summary
The ALT-100 is a clinic-focused Class 4 veterinary laser system available in two configurations. ALT-100A combines 650 nm and 980 nm. ALT-100B adds 1470 nm and supports an optional fiber-delivered treatment configuration. The system is intended for trained veterinary professionals and includes touchscreen parameter control, adjustable timing and dedicated safety controls.

Key Features

• Two wavelength configurations: ALT-100A = 650 nm + 980 nm; ALT-100B = 650 nm + 980 nm + 1470 nm (1470 nm for selected fiber-delivered procedures).
• 8-inch color touchscreen: direct access to mode, wavelength, power and timer settings.
• Compact format: enclosure 330 × 230 × 175 mm; weight ≤ 3.5 kg (ALT-100A) or ≤ 3.6 kg (ALT-100B).
• Adjustable output modes: continuous, pulsed and super-pulsed; treatment time set via touchscreen.
• Clinic safety controls: key control, emergency stop, system self-check and fault lockout.
• Therapy and optional fiber tools: adjustable-spot physiotherapy handpiece included; ALT-100B supports optional treatment handpiece and low-hydroxyl quartz fiber accessories.

How the Multi-Wavelength Platform Works
Laser–tissue interaction depends on wavelength, output power, energy delivery, mode, target area and tissue properties. The 650 nm and 980 nm channels are configured for veterinary physiotherapy workflows. The 1470 nm channel (ALT-100B) is strongly absorbed by water and is intended for selected soft-tissue procedures when used with compatible fiber accessories and where permitted by local labeling. Trained veterinary professionals should select and adapt protocols to diagnosis, species, coat, tissue depth and patient tolerance. The device does not replace clinical examination, diagnosis or monitoring.

Veterinary Applications

• Musculoskeletal rehabilitation: joint discomfort and mobility limitations.
• Management of sprains, strains and selected tendon or muscle conditions.
• Postoperative rehabilitation and tissue-recovery support where permitted by labeling.
• Canine and feline physiotherapy workflows under veterinary supervision.
• Selected fiber-delivered soft-tissue procedures with ALT-100B when authorized and used per instructions for use.

Treatment outcomes
Treatment outcomes vary by diagnosis, protocol and patient. No clinical outcome is guaranteed.

ALT-100A and ALT-100B Model Comparison
Wavelengths: ALT-100A = 650 nm, 980 nm | ALT-100B = 650 nm, 980 nm, 1470 nm
Maximum average output: ALT-100A = 1 W @ 650 nm; 30 W @ 980 nm; Total 31 W | ALT-100B = 0.5 W @ 650 nm; 15 W @ 980 nm; 15 W @ 1470 nm; Total 30.5 W
Output modes: Continuous, pulsed, super-pulsed | Continuous, pulsed, super-pulsed
Timer: Adjustable | Adjustable
Display: 8-inch touch screen | 8-inch touch screen
Cooling: TEC cooling | TEC cooling
Dimensions: 330 × 230 × 175 mm | 330 × 230 × 175 mm
Weight: ≤ 3.5 kg (ALT-100A) | ≤ 3.6 kg (ALT-100B)
Therapy handpiece: Adjustable-spot physiotherapy handpiece (included) | Adjustable-spot physiotherapy handpiece (included)
Fiber treatment configuration: Not listed (ALT-100A) | Optional treatment handpiece and low-hydroxyl quartz fiber (ALT-100B)

Accessories and Configuration

• Standard items: host, handpiece bracket, two keys, power cord, three animal eye masks, two laser protection goggles, electronic user manual, certificate of compliance, one physiotherapy tool.
• ALT-100B optional items: treatment handpiece, 365 µm × 3 m optical fiber, fiber stripper, fiber cutter, foot switch, compatible needles.

Professional Use and Safety
ALT-100 is a Class 4 laser product. Operate only in a controlled treatment area by trained veterinary personnel. Operator, assistant and animal require wavelength‑matched eye protection. Remove reflective objects and inspect handpiece and optical surfaces before use. Do not direct the laser toward the eyes or head. Review contraindications before each session, including active bleeding, known or suspected malignant tumors, endocrine organs, open growth plates, gravid abdomen, heart region and other restricted areas listed in the instructions for use.

Technical specifications

• Model: ALT-100A / ALT-100B
• Wavelengths: ALT-100A = 650 nm & 980 nm; ALT-100B = 650 nm, 980 nm & 1470 nm
• Maximum average output: ALT-100A = 1 W @ 650 nm; 30 W @ 980 nm; Total 31 W; ALT-100B = 0.5 W @ 650 nm; 15 W @ 980 nm; 15 W @ 1470 nm; Total 30.5 W
• Output modes: Continuous, pulsed, super-pulsed
• Timer: Adjustable via touchscreen
• Display: 8-inch color touchscreen
• Cooling: TEC cooling
• Dimensions: 330 × 230 × 175 mm
• Weight: ALT-100A ≤ 3.5 kg; ALT-100B ≤ 3.6 kg
• Therapy handpiece: Adjustable-spot physiotherapy handpiece (included)
• Optional fiber tools (ALT-100B): treatment handpiece, low-hydroxyl quartz fiber (365 µm × 3 m), fiber stripper, fiber cutter, foot switch, compatible needles
• Intended users: Trained veterinary professionals; Class 4 laser requiring controlled treatment environment
