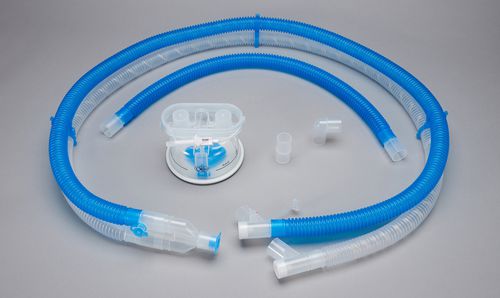

Heated Wire Circuits - Adult
Inspiratory limb: 150 cm, 22F, MR 850 style chamber adaptor
Non-heated expiratory limb: 90+60 cm with 55ml watertrap 22M
Heated expiratory limb: 150cm
Patient wye connector: 22/15 mm
Temperature port: 7.6F
Chamber limb: 60 cm
Connectors: straight connector, 22M; elbow connector, 22M, 22F
Auto-filling chamber connection ports: 22M
Compatible with major brands of humidifiers.
Unique spiral heated wires for high heating efficiency.
Limbs with heated wires are color coded for easy identification.
Single heated and dual heated models are available.
Meets ISO-5367 standard for breathing tubes.
