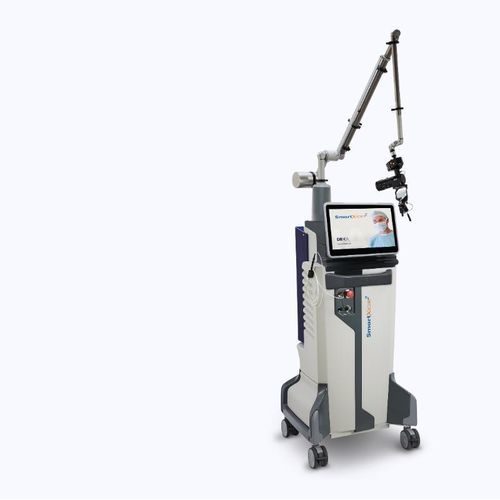

Medical cutting laser SmartXide² NEURO

automatedhigh-speed

Overview
The SmartXide² NEURO combines scanner-assisted CO₂ microsurgery with an optional high-power diode module to provide precise cutting and controlled coagulation for neurosurgical applications.

Key benefits

• Single-platform integration of Ultra Pulsed RF-excited CO₂ laser and auxiliary Diode laser for combined tissue ablation and coagulation.
• High-precision electronic scanning system with micro-spot capability for controlled ablation and minimized thermal spread.
• Scanning-aided micromanipulation with intuitive focalization and a multifunction joystick for remote control of scanning parameters.

The SmartXide² design
Continuous R&D in DEKA laboratories and specialized clinical centres has advanced SmartXide² design to address neurosurgical requirements, enhancing control over pulse shape, scan dynamics and thermal impact.

Integrated system elements

• CO₂ RF laser source with PSD® (Pulse Shape Design) technology for tailored pulse profiles.
• HiScan Surgical high-precision scanning system (micro-spot scanning up to 6.3 mm).
• EasySpot Hybrid micromanipulator with Optical Hybrid technology for combined opto-mechanical handling.
• High-power diode module (adjunctive) to increase coagulation capability and enable diode-specific techniques.

Accessories & Modules

• HiScan Surgical: Ultra-fast beam movement (100 millionths of a second); minimal dwell time; wide selection of high-precision scan shapes up to 6.3 mm; 3D ablation; depth and thermal damage control.
• EasySpot Hybrid: Optical Hybrid technology; integration with HiScan Surgical; joystick with exclusive microswitch for scan rotation (stepwise and fast), ablation shape size adjustment, Scan-ON/Scan-OFF and beam centering.
• Handpieces: Range of handpieces with integrated smoke evacuation channel; interchangeable focusing lenses, spacers and mirrors for varied surgical approaches.
• MicroScan Surgical: Miniaturized scanning system for free-hand procedures (e.g., oropharyngeal); ultra-fast beam movement and minimal dwell time.
• High Power Diode Laser (adjunctive): Fiber-delivered module, 50 W, 980 nm; optional second wavelength for enhanced coagulation; supports diode-specific techniques.

Category
DEKA Surgical

Source
CO₂ 10600 nm and Diode 980 nm

Applications
Neurosurgery

Technical specifications

• Model: SmartXide² NEURO
• Laser sources: CO₂ (RF-excited, Ultra Pulsed) and Diode (980 nm, optional)
• PSD® (Pulse Shape Design) technology for CO₂ pulse shaping
• Scanning system: HiScan Surgical (high-precision micro-spot scanning, up to 6.3 mm)
• Supported micromanipulators: EasySpot Hybrid (Optical Hybrid) and MicroScan Surgical (miniaturized free‑hand scanning)
• Multifunction joystick remote control (scan rotation, dimension adjustment, Scan-ON/Scan-OFF, beam centering)
• Handpieces: multiple focusing lenses, spacers, mirrors; integrated smoke evacuation channel
• Optional High Power Diode module: 50 W, 980 nm; second wavelength option for increased coagulative power
• Main clinical application: scanner-assisted CO₂ microsurgery with diode-assisted coagulation for neurosurgical procedures
