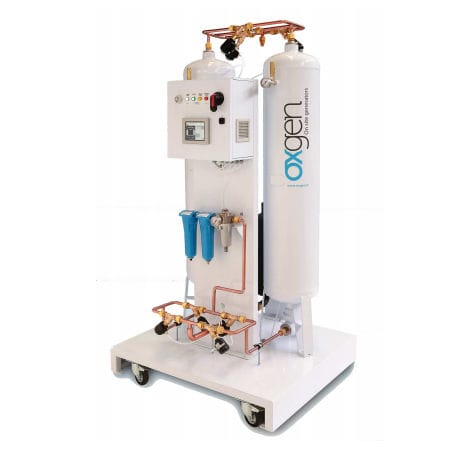

PSA oxygen generator OxGen

PSA oxygen generator
PSA oxygen generator
PSA oxygen generator
PSA oxygen generator
Add to favorites
Compare this product


container, plug-and-play
Other characteristics


GENERAL DESCRIPTION OxGen PSA oxygen generators are intended to be used as oxygen source of supply in healthcare facilities, veterinary clinics and industrial application. The technology that OxGen utilizes is the PSA process (Pressure Swing Adsorption). It is the engine that drives the separation of oxygen from air, with a degree of purity over 93%. It is a purely physical process denominated adsorption. During the adsorption step, nitrogen is adsorbed at elevated pressure and oxygen is produced. During the regeneration step, nitrogen is desorbed via depressurization and the adsorbents are regenerated. In order to convert this batch process into a continuous process, OxGen uses two adsorbent vessels. As one is adsorbing, the other is regenerating and viceversa. MAIN FEATURES OxGen units are available in 21 standard models with capacity in the range from 1 to 86 Nm3/hour. Other capacities are available on request The purity of gas produced is in accordance with European Pharmacopoeia monograph for Oxygen 93% OxGen can supply on request SKID MOUNTING (PLUG & PLAY) or CONTAINER BUILT solutions, buffer vessels, filters, advanced control, dew point, pressure, temperature, flow, purity and remote monitoring included OxGen can supply a wide range of CYLINDERS FILLING STATIONS fully equipped with high pressure boosters, cylinders, fittings connections, valves, racks and other accessories OxGen oxygen generators are CE certified in accordance with MDD (medical device directive) and PED (pressure equipment directive), complying as well with ISO 7396-1 and ISO 10083.
