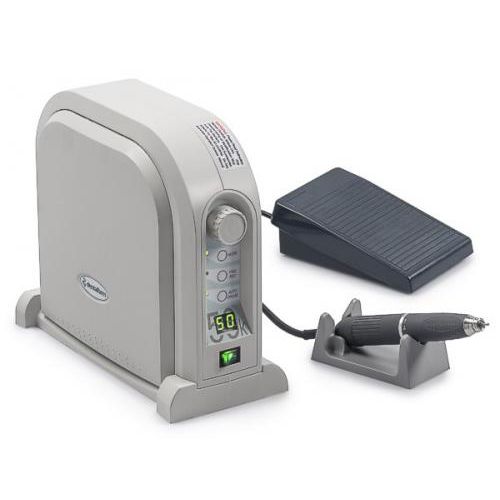

Dental laboratory micromotor control unit HP50T
brushless electricpedal-operatedbenchtop

dental laboratory micromotor control unit
dental laboratory micromotor control unit
Add to favorites
Compare this product


Characteristics

Application domain
for dental laboratories
Operation
brushless electric
Ergonomics
pedal-operated, benchtop
Options and accessories
with micromotor, complete set
Speed

Min.: 1,000 rpm (6,283.2 rad.min-1)

Max.: 50,000 rpm (314,159.3 rad.min-1)

Description

A5051 HP50T BRUSHLESS BENCH-TOP INDUCTION MICROMOTOR Model featuring bench-top vertical control unit with digital display. Three operating possibilities: manual, by foot-control or knee-control (the specific housing of the control unit allows the micromotor to be installed on the bench right side at the most comfortable height). Adjustable speed with auto-cruise function and reversible rotation. Permament self-diagnostics detecting any uncorrect function and accurate check procedure on each components which can be carried out by the User himself. New generation brushless handpiece (50.000 rpm) assuring utmost performance (torque 6.8 Ncm) and excellent grip. CHARACTERISTICS Motor: 160W Speed: 1.000 – 50.000 rpm Handèpiece size: Ø23x 63 Torque: 6,8 Ncm Size of control unit: mm 95x270x230H Weight: 4,5 Kg HP50T is a reliable, noiseless and very powerful brushless micromotor expressly designed to accomplish the daily work in the Dental, Gold and Jewellery laboratory. The speed of the motor can range from 1.000 to 50.000 rpm. The highest speed can be adjusted by means of the potentiometer knob on the control panel. Starting-up of the motor is gradually activated through a foot- or knee-controlled rheostat. The electronic power circuit is incorporated and protected in a solid and sturdy control unit which can be either positioned on the working bench (foot-control to be placed on the floor) or on the right side of the bench for knee operation. The handpiece is ergonomic, very light and perfectly balanced. The spindle pliers support ∅ 2.35mm bur and additional pliers for ∅ 3.00mm burs are also available upon request.
