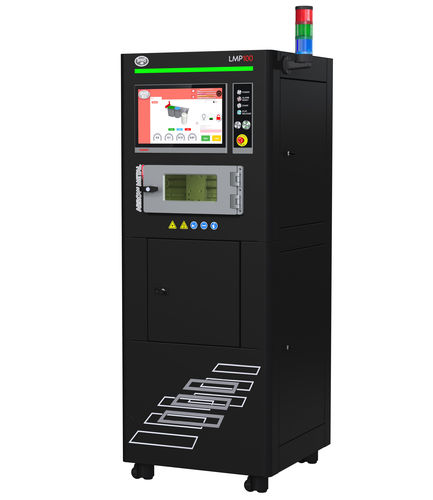

Dental 3D printer LMP100
floor-standinghigh-speedmetal

dental 3D printer
dental 3D printer
dental 3D printer
Add to favorites
Compare this product


Characteristics

Applications
dental
Configuration
floor-standing
Other characteristics
high-speed, metal

Description

We are proud to present our metal 3D printing device, Arrow metal printing. This machine is specifically built for the production of dental prosthetic restorations. Because of this diameter of laser focal point of only 35 µm. Crowns, bridges and removable prosthesis are made from high-quality Cobalt-Chromium metal powder. It is possible to use also gold, aluminium, copper and tool steel powders so the machine can be used also in the jewellery production and industry. The operation principle is quite simple and easy to understand. 3D model (of crown or bridge for example) is prepared by special software into many layers or so-called slices. With high power built-in laser, the machine melts the metal powder into specific 2-dimensional shape. By adding the next layer of metal powder and consecutive laser melting into a specific shape we gradually add more and more layers (the standard layer thickness is 25 µm) until the whole object is printed. Specifications Building volume Φ 90 x 70 mm3 (X, Y, Z) Layer thickness 20 μm – 50 μm, for dental Laser type Yb-fiber laser, 20 W – 100 W Optical system F-theta lens; high-speed scanner Rated voltage 230 V/ 50-60 Hz, 16 A Rated power 1,5 kW Inert gas consumption approx. 50 liter/ hour Inert gas connection 8 mm push-in connector / min. 1 bar Weight approx. 230 kg
