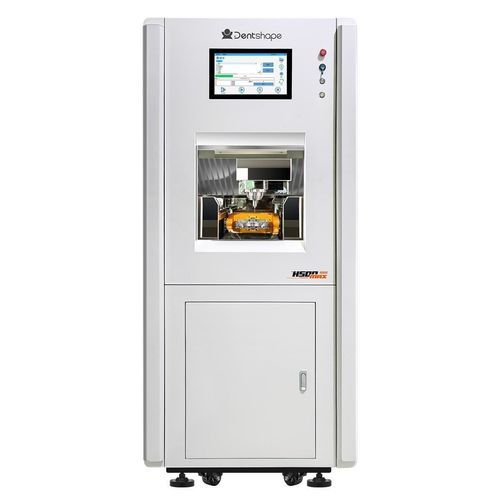

CAD/CAM milling machine H500MAXdentalfor dental laboratoriesfor dental prostheses
Add to favorites
Compare this product
Characteristics
- Type
- CAD/CAM
- Applications
- dental, for dental laboratories, for dental prostheses
- Designed for
- for dental wax, for titanium, for ceramics, for metal, for resin, for dish
- Number of axes
- 5-axis
- Number of spindles
- multi-spindle
- Machining type
- wet machining
- Configuration
- floor-standing
- Other characteristics
- computer-controlled
- Spindle speed
40,000 rpm
(251,327 rad.min-1)- Machining precision
50 µm
- Power
4,000 W, 7,600 W
- Height
1,920 mm
(75.59 in)- Depth
1,100 mm
(43.31 in)- Weight
1,000 kg
(2,204.62 lb)
Description
Overview
The H500MAX is a dental 5-axis milling machine designed for high-throughput production of dental restorations. It features 80 spindles, a gantry and cradle layout and a monolithic cast-iron base for stable machining and repeatable accuracy. An end-lock mechanism improves axial stability during heavy cutting.
Sample Gallery
Multiple sample images of produced parts and fixtures are available on the product page to illustrate typical outputs and clamping setups.
Materials
Applications
Product Equipment Parameters
The H500MAX is a dental 5-axis milling machine designed for high-throughput production of dental restorations. It features 80 spindles, a gantry and cradle layout and a monolithic cast-iron base for stable machining and repeatable accuracy. An end-lock mechanism improves axial stability during heavy cutting.
Sample Gallery
Multiple sample images of produced parts and fixtures are available on the product page to illustrate typical outputs and clamping setups.
Materials
- Pure Titanium
- Resin
- Wax
- PEEK
- Aluminum
- Glass Ceramic
- Disc
- Plate
Applications
- Bridge
- Bar Clip
- Ball Attachment Abutment
- Locator Abutment
- Angled Composite Abutment
- Straight Composite Abutment
- Framework
Product Equipment Parameters
- Control Axes: 5-axis
- Precision: ±50 µm
- Spindle Speed: 40,000 rpm
- Spindle Power: 4 kW
- Tool Capacity: 30 tools
- Cooling: Liquid
- Axis Travel (XYZ): 300×300×300 mm
- Machining Angle: A ±35°; B 360°
- Dimensions (W×D×H): 850×1100×1920 mm
- Voltage: AC 220V 50/60Hz
- Weight: ~1000 kg
- Total Power: 7.6 kW
