Drill surgical power tool MBU-480

reamersawbattery-powered

Introduction
The MBU-480 multidrive™ handpiece from De Soutter Medical is a modular surgical instrument designed for confined operative fields and a range of procedures including trauma, spinal and small-bone work. The system supports up to 38 quick-change attachments (configuration dependent) and provides a ream torque of 16.5 Nm. Power options cover sterile and aseptic workflows to match surgical requirements.

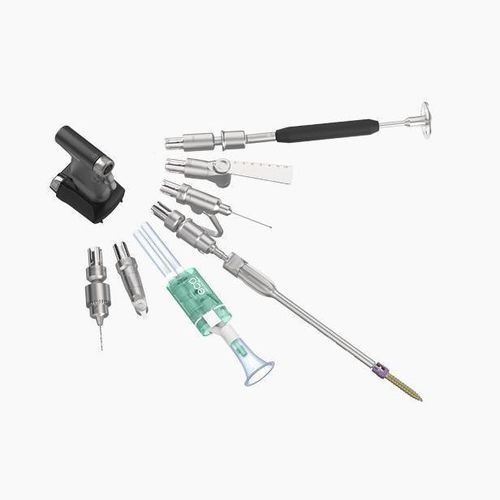

Attachments
The system offers a quick-change mechanism with multiple attachment types:

• Drill attachments
• High-speed rotary bur attachments
• Reaming attachments
• Reciprocating saw attachments
• Sagittal saw attachments
• Wire and pin driver attachments

Technical Information
Handpiece

• Model: MBU-480 (modular handpiece)
• Drill speed: 0 - 1350 rpm
• Screw speed: 0 - 270 rpm
• Controls: Forward and reverse triggers
• Ream torque: 16.5 Nm
• Attachments: up to 38 quick-change options (system dependent)

Power

• 13.2V Li‑Ion sterile batteries
• 10.95V or 14.6V Li‑Ion aseptic batteries
• Corded direct power option

Specifications

• Product name: multidrive MBU-480
• Model: MBU-480
• Handpiece type: Modular handpiece (MBU-480)
• Attachment types: Drill, High-speed rotary bur, Reaming, Reciprocating saw, Sagittal saw, Wire and pin driver
• Quick-change attachment mechanism: Yes
• Power options: Sterile and aseptic Li‑Ion batteries; Corded
