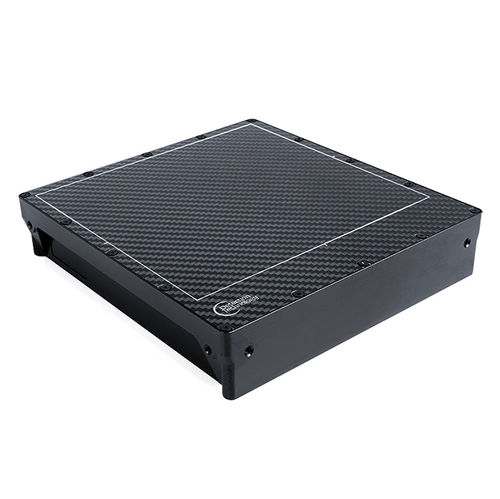

CBCT imaging flat panel detector X-Panel® 1615d

6 x 6

Active CMOS pixel sensor (APS) Dual gain (LFW/HFW) 100um pixel 14-bit ADC, frame rate up to 66 fps (@full frame and resolution, scan-to-buffer mode) Scan-to-buffer mode up to 500 full frames In-built correlated double sampling (CDS) for extended surgical scans In-built offset, gain, and defect pixel correction Fully programmable ROI GigE and Camlink data interface options Imaging performance Dynamic range up to 76 dB DQE(0) >70% @0.8uGy/frame, @RQA5 MTF @1lp/mm>60%, @2lp/mm>30% The X-Panel 1615 is an application-optimized CMOS X-ray flat panel detector series designed for dental and surgical X-ray imaging applications. The X-Panel 1615 enhances both patients’ and healthcare professionals’ experience and safety, and eases the design of stringent medical imaging systems for shortening time-to-market and bringing total cost savings. For greater digital imaging, the X-Panel 1615 is available in two models that are optimized to application-specific requirements, and offer use-case-driven add-on features. The X-Panel 1615s is a perfect fit for mini C-arm systems used in the surgical field. Its built-in functions provide extra image stability in long fluoroscopic scans. In turn, the 1615d model, with its ultra-high frame rates enabled by the scan-to-buffer mode, boosts dental cone beam computed tomography (CBCT) and panoramic imaging systems. Both models come with a large active area of 161-by-150 mm. This improves diagnosis by allowing full-sized and detailed images of clinically relevant anatomy to be viewed, minimizes the required scanning time and overall radiation dose, and streamlines workflows during surgical operations and dental treatments.
