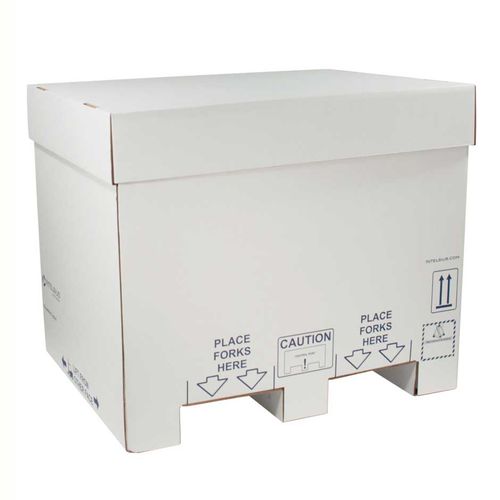

Pharmaceutical product packaging box PharmaTherm Pallet 230

transportpaperisothermal

Product overview
The PharmaTherm Pallet 230 is a pallet-sized temperature-controlled shipping solution for pharmaceutical and life-science consignments. Available in 2°C–8°C, 15°C–25°C and Dry Ice variants, the range supports regional and international air and road shipments and is compatible with single- and double-body aircraft payloads. When purchasing a full pallet configuration (2 units) UK-wide delivery is included in the price.

Key features

• 2–8°C systems use PharmaChill cool packs — reusable, durable coolant to reduce operating cost and waste
• 15–25°C systems use phase change materials (PCM) for improved thermal stability vs water-based systems
• Consistent qualification across the range — all sizes qualified to a minimum of 96 hours

Variants / typical specifications
2°C–8°C (variant)
External dims – 938mm x 750mm x 765mm
Payload dims – 625mm x 452mm x 410mm
Payload volume – 115 L
Mass – 27.2 KG
Supplied in units of 2

15°C–25°C (variant)
External dims – 938mm x 750mm x 765mm
Payload dims – 681mm x 511mm x 420mm
Payload volume – 146 L
Mass – 47.6 KG
Supplied in units of 2

Dry Ice (variant)
External dims – 938mm x 750mm x 765mm
Payload dims – 767mm x 597mm x 510mm
Payload volume – 233.5 L
Mass – 8.0 KG
Dry ice capacity – 118.7 KG
Supplied in units of 2

Product documents
Product sheet / datasheet available (provided by the manufacturer).

Technical specifications

• Commercial name – PharmaTherm Pallet 230
• SKU – PTP230S
• Available temperature ranges – 2°C–8°C, 15°C–25°C, Dry Ice
• Qualification – Minimum 96 hours across the range
• External dimensions (all variants) – 938mm x 750mm x 765mm
• Payload volume (by variant) – 115 L (2–8°C), 146 L (15–25°C), 233.5 L (Dry Ice)
• Mass (by variant) – 27.2 KG (2–8°C), 47.6 KG (15–25°C), 8.0 KG (Dry Ice)
• Dry ice capacity (Dry Ice variant) – 118.7 KG
• Cooling media – PharmaChill cool packs (2–8°C); phase change materials (15–25°C); dry ice option for sub-zero shipping
• Intended use – Regional and international temperature-controlled pallet shipping; compatible with aircraft payloads
