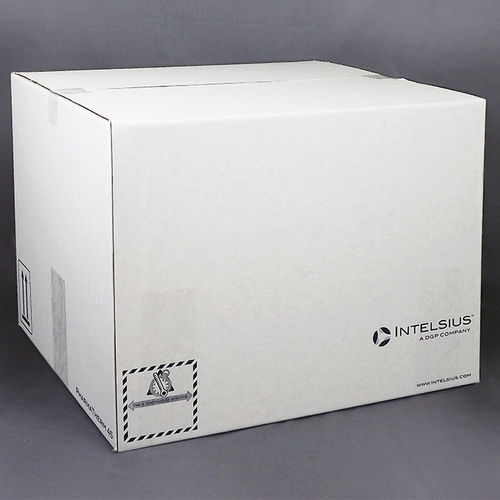

Pharmaceutical product packaging box PHARMATHERM 45

biological samplestransportpaper

Overview
PHARMATHERM 45 HP Winter Packout is a temperature-controlled transport container designed to maintain 2–8°C for up to 96 hours. The unit provides a 19.6 L payload volume in a compact footprint suitable for distribution of temperature-sensitive pharmaceuticals and vaccines.

Technical specifications

• CODE: PHT009
• Brand Family: Pharmatherm
• Duration: 96 Hours
• Payload Volume: 19.6 Liters
• Payload Space - Length: 345 mm
• Payload Space - Width: 325 mm
• Payload Space - Height: 175 mm
• System Weight: 20.4 lbs (≈9.25 kg)
• External Dimension - Length: 563 mm
• External Dimensions - Width: 508 mm
• External Dimensions - Height: 431 mm

Applications
The system is intended for controlled transport of temperature-sensitive pharmaceutical products, vaccines and clinical samples where maintenance of 2–8°C is required for multi-day shipments.

Handling & logistics

• Compact external dimensions (563×508×431 mm) for easy integration into courier and pallet workflows
• Payload volume (19.6 L) suitable for vials, syringes and small carton quantities
• Lightweight system (20.4 lbs / 9.25 kg) facilitates manual handling
• Designed for multi-day cold-chain transit up to 96 hours under recommended conditions

Ordering information

• CODE: PHT009
• Brand: Pharmatherm
