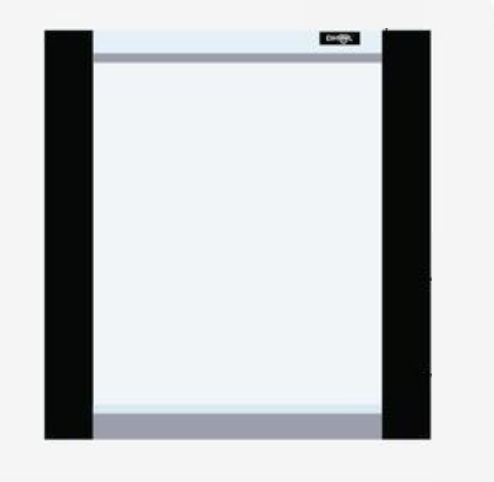

Digital X-ray film viewer

1-screen2-screen3-screen

Product overview
LED X-ray view box is a medical device designed to display X-rays, mammograms and other diagnostic films. It features a uniform backlit LED surface and is offered in single, double, triple and quadruple screen configurations for use in hospitals, clinics and radiology centers.

Key features

• Energy-efficient LED illumination: up to 80–90% energy savings versus fluorescent lamps
• Long service life: LEDs rated up to 100,000 hours
• No UV emissions and minimal infrared heat for improved eye safety
• Instant-on, flicker-free lighting
• Digital dimmer control for precise brightness adjustment
• Low-voltage power supply for enhanced safety
• Film-activated sensor for automatic shutdown when no film is present
• 100% uniform light distribution across the screen
• Color temperature 12000–15000K optimized for X-ray, CT and MRI film viewing

Available configurations

• Single View Box
• Double View Box
• Triple View Box
• Quadruple View Box

Configuration table
Dimensions: Single 14x17 | Double 28x17 | Triple 42x17 | Quadruple 56x17
Light source: LED | Lamp life: 100,000 hours | Net weight (kg): Single 2.9 / Double 5.45 / Triple 8.2 / Quadruple 10.95

FAQs summary

• LED units provide higher brightness, more uniform light distribution and longer lifespan compared with fluorescent view boxes.
• Recommended brightness for diagnostic interpretation: 12000–14000 cd/m2.
• Offered in standard single-to-quadruple film formats and available in custom sizes on request.
• Mounting options include wall-mounted, portable and desktop versions.
• Dimmer control allows brightness adjustment based on film type and ambient lighting.
• LED technology significantly reduces power consumption and maintenance requirements.
• Typical panel lifetimes often exceed 50,000 hours; product specifications list lamp life around 100,000 hours.
• Typical use cases: hospitals, diagnostic centers, radiology labs and clinics.

Technical specifications

• Commercial name: Led X Ray View Box
• Available sizes: Single (14x17), Double (28x17), Triple (42x17), Quadruple (56x17)
• Light source: LED
• Color temperature: 12000K–15000K (white / light-blue)
• Recommended brightness: 12000–14000 cd/m2
• Lamp/LED life: ~100,000 hours (panel lifetimes referenced as 50,000+ hours)
• Uniformity: 100% uniform light across the screen
• Controls: Digital dimmer; film-activated switch/film sensor
• Power: Low-voltage power supply
• Mounting: Wall-mountable; some models available as portable/desktop
• Net weights: Single 2.9 kg, Double 5.45 kg, Triple 8.2 kg, Quadruple 10.95 kg
