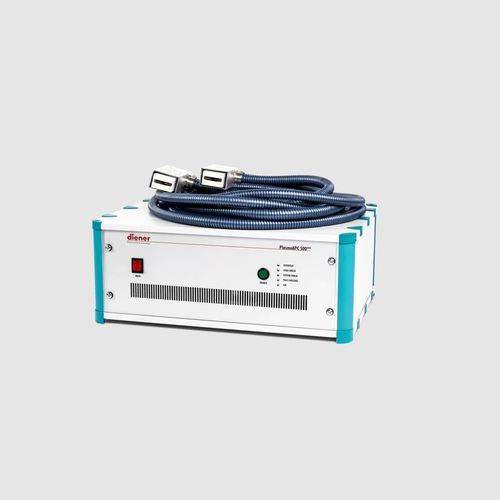

Plasma surface treatment system PLASMA APC 500 DUO

semi-automaticautomaticmanual

Atmospheric pressure plasma technology is a way to increase quality in production by surface activation and/or cleaning. The Plasma APC 500 DUO is suitable for the following applications: Plastics technology Elastomer technology Small batch production Medical engineering Research and development Optics Supply unit Supply unit W 562 mm, H 211 mm, D 420 mm, weight: approx. 20 kg Plasma generator two plasma generators: L 60 mm, W 60 mm, diam. 40 mm, weight 0.5 kg Flexible supply line 2 x plastic-metal protective tube diam. 19 mm, L 3 m, bending radius 100 mm Generator Frequency: 40 kHz, power: 500 W/nozzle, treatment width: 50-60 m Connections Supply voltage: 230 V, 50/60 Hz Operation and controls Manual mode with operating elements on the front panel, or semi-automatic mode via SUB-D connection on the rear panel (switches plasma on and off). Automatic process monitoring via micro-controller (factory-set): pulse width electrical current air generation touch-protection function Test inks: Standard kit, manufactured acc. to DIN ISO 8296:2008-03 Test ink for easy analysis of the surface tension. The kit comprises 30, 38, 44, 48, 56, 64, 73 and 105 mN/m. Transport of hazardous goods applies Longer flexible supply line: 4 x protective tube: diam. 19 mm, L 6 m
