Temperature data-logger S1500

laboratoryUSBmulti-channel

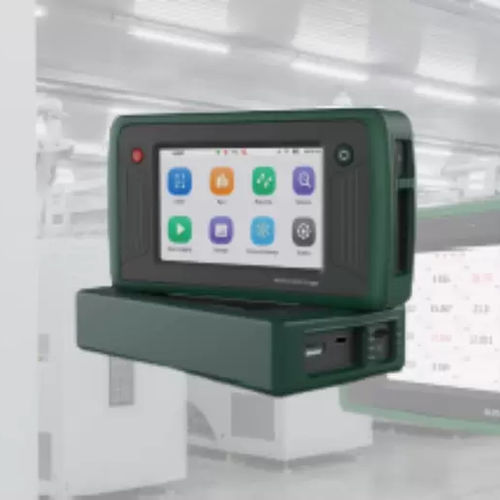

The S1500 portable multi-channel thermocouple data logger supports up to 16 channels of thermocouple signal input. The collected data can be displayed vividly through digital interface, bar chart interface, real-time curve, and other forms. The device features rich peripheral interfaces such as USB, TF card, RJ45, and WiFi, making it a portable recording instrument with high integration, intelligence, and a wide range of functions. - Models available: S1508T (8-channel), S1512T (12-channel), S1516T (16-channel) - Applications: Factory, Workshop, Labs, Warehouse Function Description: - Supports multi-channel input and up to 16 channel thermocouple input. - Supports multiple types of Thermocouple Input: K / J / E / T / R / S / N / B / C. - Wide temperature detection range: -270 ~ 2320 ℃. - The fastest sampling frequency can reach 1s. - Functionality for viewing real-time data curve and historical data curve. - Various external interfaces, supporting U disk and SD card to export historical data, meeting various user needs. - Supports USB flash disk and SD card to upgrade the program, which is convenient for users. Product Information: - 1s sampling and recording - Dimensions: 189.3 x 103.5 x 39 mm (with protective sleeve) - Display: 5 inch capacitive touch screen, resolution 800 x 480 - Number of channels: 8-channel / 12-channel / 16-channel thermocouple input - Storage capacity: Supports U disk (USB 2.0), SD card (32G) - Internal storage - External transfer - Ethernet: Transmission rate 10M / 100M bit/s, full duplex and half duplex - Battery capacity: 5000mAh - Sampling frequency: up to 1s - Recording frequency - Data format - Working temperature - Storage temperature - Relative humidity - Shell material Technical Specifications / Features: - Multi-channel thermocouple input (8, 12, or 16 channels) - Supports K / J / E / T / R / S / N / B / C thermocouple types - Temperature range: -270 to 2320 ℃ - 1s minimum sampling interval - 5-inch capacitive touch screen (800 x 480) - USB, SD card, RJ45, WiFi interfaces - 5000mAh battery - Ethernet: 10M/100M bit/s, full/half duplex - Portable, high-integration, intelligent design
