Digital dermatoscope MEDLW4DW

white LEDcomputer-basedcamera-based

Product overview

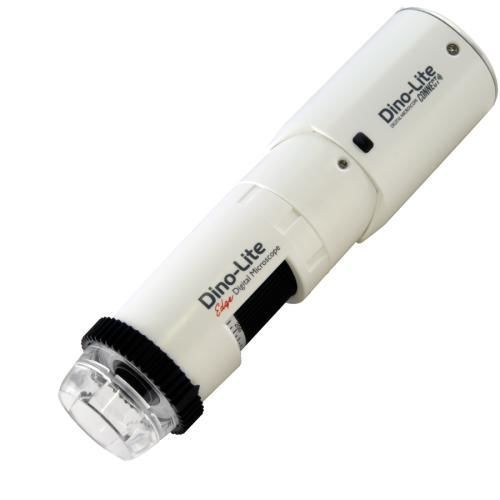

The Dino-Lite DermaScope® Wireless (MEDLW4DW) is a portable wireless dermatoscope equipped with a 1.3 megapixel CMOS sensor and a built-in, fully adjustable linear polarizer to reduce skin glare. It is intended for clinicians, dermatologists and skin specialists. For higher-end requirements see DermaScope® Polarizer HR (MEDL7DW).

Key features

• Built-in, fully adjustable linear polarizer to reduce surface reflection
• 1.3 MP CMOS sensor (1280×1024), up to 30 fps
• Wireless connectivity (Wi‑Fi) plus USB 2.0 interface
• Magnification range 10–50× with magnification lock
• 8 white LEDs, switchable

Lighting
Light / LED type: White
Number of LEDs: 8
LED on/off switchable: Yes
Infrared filter: IR cut-filter >650 nm
Diffuser available: No
Polarizer: Yes, linear

Optics
Magnification: 10–50×
Lens type: Glass with anti-reflection coating

Sensor
Sensor type: CMOS
Resolution: 1.3 Megapixel (1280×1024)
Maximum frame rate: 30 fps

Compatibility
Interface: USB 2.0
Wi‑Fi: Yes
Operating systems: Windows 7/8/10/11, MacOS 10.9 and up
Software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, ...
Supported video formats (Windows): WMV, FLV, SWF
Supported image formats (MacOS): JPEG, PNG
Supported video formats (MacOS): MOV
Imaging standards: DirectShow, UVC

Housing
Housing material: Composite / plastic
Magnification lock: Yes
Dimensions: 10.5 cm (L) × 3.2 cm (D)
Weight: 105 g
Cable length: 1.8 m

Additional features
Microtouch sensor: Yes
Special feature: No
Measurement: No
Calibration: No

Package & compliance
Package contents: Microscope, carry pouch, software CD, user manual, N3C-C, N3C-L
Warranty: 2 years (European warranty)
Regulatory approval: Medical Device Class 1 – Medical Devices Regulation (EU) 2017/745
Price range: €900,00 - €1100,00

Technical specifications

• Model: DermaScope® Wireless (MEDLW4DW)
• Sensor: 1.3 MP CMOS (1280×1024)
• Magnification: 10–50× (glass lens, anti-reflection coating)
• Illumination: 8 white LEDs, switchable; IR cut-filter >650 nm; built-in linear polarizer
• Interfaces: USB 2.0 and Wi‑Fi
• Max frame rate: 30 fps
• Housing: Composite/plastic; 10.5 cm × 3.2 cm; 105 g
• Package: Microscope, carry pouch, software CD, manual, N3C-C, N3C-L
• Warranty: 2 years (Europe)
• Regulatory: Medical Device Class 1 (MDR EU 2017/745)
